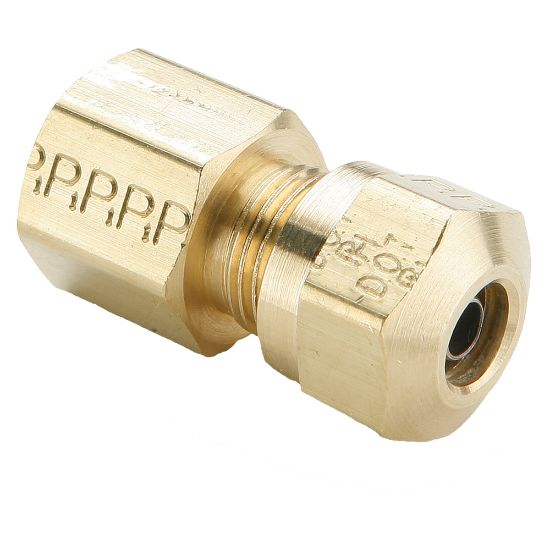

66NTA-4-2 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	124 in stock

SKU 66NTA-4-2

$9.36/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Connection 2 Thread Size (inch)	1/8
Connection 2 Tube O.D. (inch)	na	Shape	Connector
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Style	Female Pipe	Style	Tube to Female Pipe
Minimum Operating Temperature	-40 °C	Body Material	Brass
Maximum Operating Pressure	10 bar	Maximum Operating Temperature	93 °C
Dimensional Weight	0.27594424460431655 lb	Nut Material	Brass
Sleeve Material	Brass	Tube Material	Stainless Steel
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Thread Sealant Material	Vibra-Seal 516
