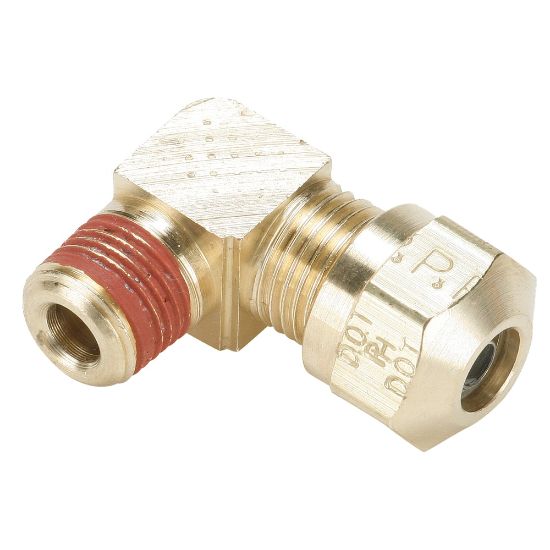

Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA - VS269NTA-3-2

Name: Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA - VS269NTA-3-2
SKU: VS269NTA-3-2

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:

Backordered

SKU VS269NTA-3-2

$19.70

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube O.D. (inch)	na
Connection 2 Thread Size (inch)	1/8	Shape	90° Elbow
Connection 3 Thread Size (inch)	na	Connection 3 Style	na
Connection 2 Style	Male Pipe	Style	Tube to Pipe
Connection 1 Tube O.D. (inch)	3/16	Connection 1 Style	Compression
Division	Fluid System Connectors Division	Body Material	Brass
Minimum Operating Temperature	-40 °C	Sleeve Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Thread Sealant Material	Vibra-Seal 516
Nut Material	Brass	Application	Air Brake, Accessories
Maximum Operating Temperature	93 °C	Maximum Operating Pressure	10 bar
Tube Material	Stainless Steel
