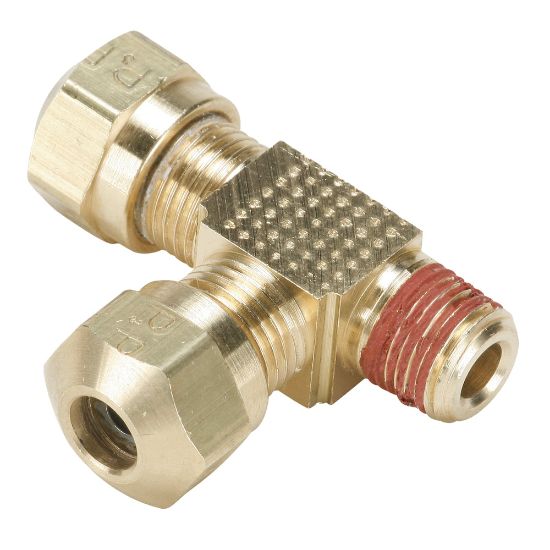

Picture of Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA - VS271NTA-4-2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA - VS271NTA-4-2

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.
Availability:
23 in stock
Kansas City, KS20
Wichita, KS3
SKU VS271NTA-4-2
$14.02
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAShapeRun Tee
Connection 2 Tube O.D. (inch)naStyleTube to Pipe
Connection 1 StyleCompressionConnection 2 StyleMale Pipe
Connection 1 Tube O.D. (inch)1/4Connection 3 Thread Size (inch)na
Connection 3 StylenaConnection 2 Thread Size (inch)1/8
ApplicationAir Brake, AccessoriesNut MaterialBrass
Tube MaterialStainless SteelBody MaterialBrass
DivisionFluid System Connectors DivisionSleeve MaterialBrass
Specifications MetDOT FMVSS 571.106, SAE J1131, SAE J246Minimum Operating Temperature-40 °F
Maximum Operating Temperature200 °FThread Sealant MaterialVibra-Seal 516
Maximum Operating Pressure150 psi
