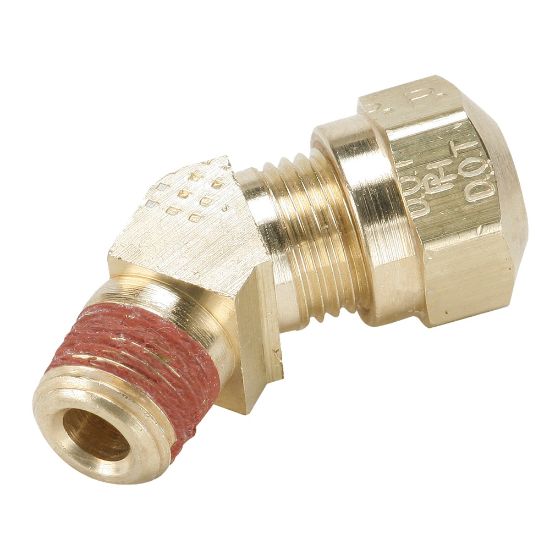

VS279NTA-10-8 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: VS279NTA-10-8 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: VS279NTA-10-8
Price: 42.26 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:

16 in stock

Kansas City, KS

Partner Available:

80 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU VS279NTA-10-8

$42.26/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube O.D. (inch)	5/8
Connection 2 Tube O.D. (inch)	na	Connection 2 Thread Size (inch)	1/2
Connection 3 Thread Size (inch)	na	Connection 3 Style	na
Shape	45° Elbow	Connection 2 Style	Male Pipe
Style	Tube to Pipe	Connection 1 Style	Compression
Maximum Operating Temperature	200 °F	Thread Sealant Material	Vibra-Seal 516
Tube Material	SAE J844 Type A & B Nylon Tubing	Body Material	Brass
Minimum Operating Temperature	-40 °C	Sleeve Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Nut Material	Brass
Dimensional Weight	0.27594424460431655 lb	Maximum Operating Pressure	10 bar
