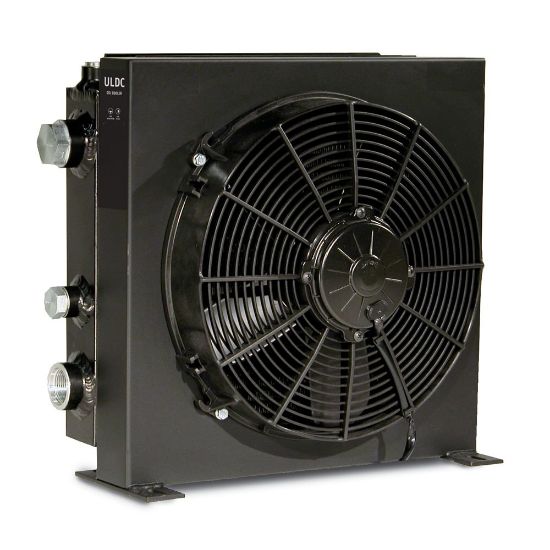

ULDC-007-A-100SW - Air Oil Cooler with DC Motor - ULDC Series - (Americas)

ULDC Series mobile air oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 37hp of cooling and are suitable for most mobile applications.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU ULDC-007-A-100SW

$2,076.70/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Motor Type	12 VDC
Thermoswitch	100°F	Size	ULDC-007
Bypass Options	no bypass	Maximum Fluid Temperature	250 °F
Connection Thread Size	1-5/16"-12 inch	Maximum Operating Pressure	300 psi
Maximum Cooling Capacity	9.7 HP	Input Voltage	12 VDC
Motor Power Output Rating	0.27 HP	Materials of Construction	Aluminum
Port Size	1	Noise Level	71 dBA
Length	330.2 mm	Weight	20 lb
Height	13.3 inch	Flow Rate	124.9 L/min
For Fluid Type	Water Glycol	Specifications Met	N/A
