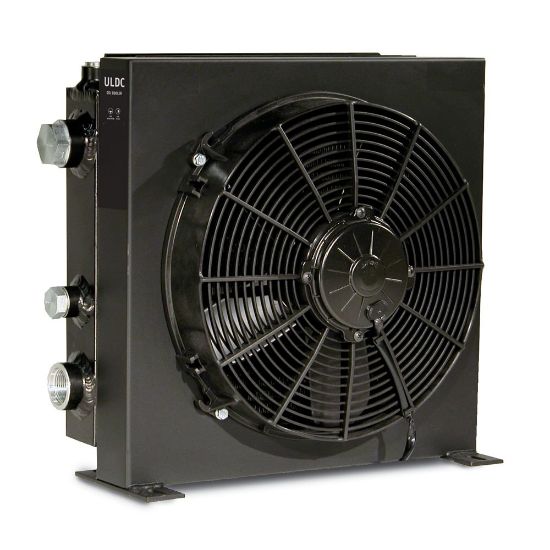

Picture of Air Oil Cooler with DC Motor - ULDC Series - (Americas) - ULDC-020-B-100SB

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Air Oil Cooler with DC Motor - ULDC Series - (Americas) - ULDC-020-B-100SB

ULDC Series mobile air oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 37hp of cooling and are suitable for most mobile applications.
Availability:
Backordered
SKU ULDC-020-B-100SB
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASizeULDC-020
Motor Type24 VDCThermoswitch100°F
Bypass Options65 psi External Hose BypassMotor Power Output Rating0.34 kW
Input Voltage24 VDCMaterials of ConstructionSteel
Height508 mmMaximum Operating Pressure20.7 bar
Weight40 lbWidth8.3 inch
Specifications MetN/ANoise Level82 dBA
Maximum Cooling Capacity17.0 kWLength20.1 inch
DivisionAccumulator and Cooler DivisionFlow Rate199.8 L/min
Connection Thread Size1-5/16"-12 inchFor Fluid TypePhosphate Ester
Maximum Fluid Temperature121 °CPort Size1
