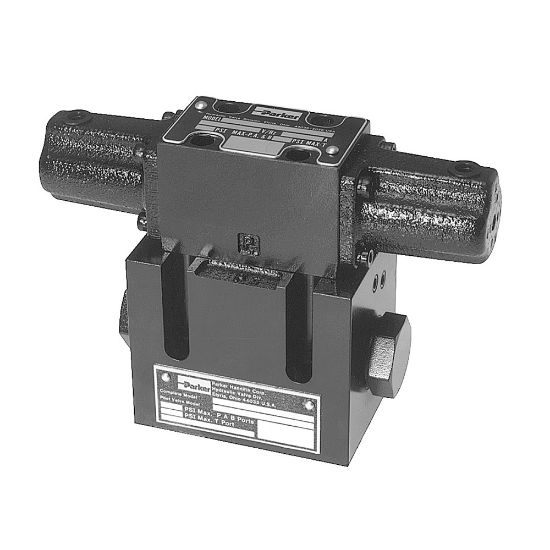

D31VA004C4N7 - Air Operated Directional Control Valve - D31DA, D31VA Series

Parker’s D31*A directional control valves are 5-chamber, air pilot operated valves.

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU D31VA004C4N7

$2,112.60/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Subplate
Maximum Operating Pressure	5000 PSI	Maximum Flow Rate	Up to 40 GPM depending on spool
Size	NFPA D05H, CETOP 5	Minimum Operating Temperature	-4 °F
Seal Material	Nitrile	Maximum Operating Temperature	140 °F
Maximum Operating Pressure	345 bar	Weight	12.7 lb
Actuation Type	Hydraulic Pressure	Maximum Flow Rate	40 Gal/min
Size	CETOP 5	Mounting Type	Subplate
Body Material	Gray Iron	Options	Pilot Choke Meter-out
Valve Type	Air Operated Directional Control Valve	Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain
Spool Code	P Port Blocked	Spool Position	Spring Centered
