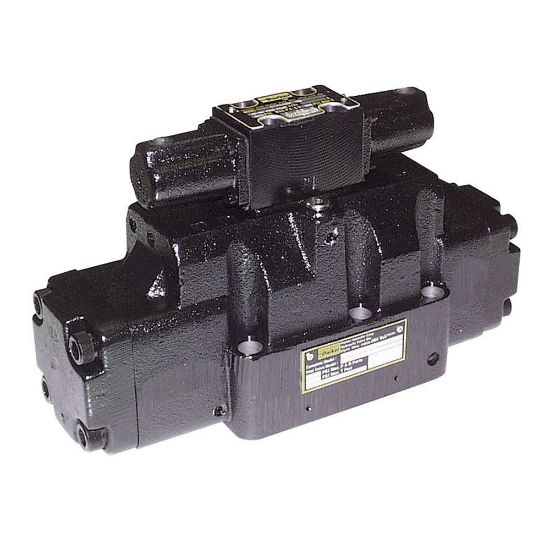

D81VA002C2N - Air Operated Directional Control Valve - D81VA Series

Parker’s D81VA directional control valves are 5-chamber, air pilot operated valves.

Availability:	Backordered Estimated Lead Time: 112 days
Partner Available:	Backordered

SKU D81VA002C2N

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Subplate
Maximum Flow Rate	160 GPM	Maximum Operating Pressure	5000 PSI/345 Bar
Size	NFPA D08, CETOP 8, DIN NG181	Seal Material	Nitrile
Maximum Operating Temperature	140	Maximum Operating Pressure	5000
Minimum Operating Temperature	-4	Actuation Type	Hydraulic Pressure
Maximum Flow Rate	160	Options	n/a
Mounting Type	Subplate	Size	NFPA D08
Body Material	Gray Iron	Spool Code	4-Way
Valve Type	Air Operated Directional Control Valve	Pilot Inlet / Drain Locations	External Pilot / External Drain
Spool Position	3-Position	Weight	43.9
