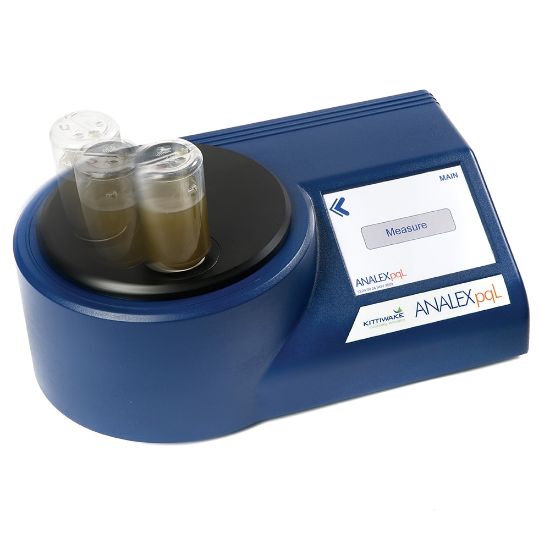

FG-K17000-KW - ANALEX_PQL -Ferrous Debris Monitor

Laboratory-grade instrument, providing the most accurate means of detecting, measuring and trending ferrous wear debris in a fluid or grease sample that has been in contact with machinery parts.

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU FG-K17000-KW

$58,638.30/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Ferrous debris monitor
Features	Rapid tesing for magnetic iron in fluid samples	Accuracy	1%
Electrical Requirements	24 VDC	Cycle Time	4 second
Connection Type	n/a. Manually or automatically fed samples	Flow Rate	n/a
Signal Output	RS232	Sensing Range	Magnetic metal particles in fluid 0 pq to 5000 pq
Size	140 mm x 370 mm x 230 mm (HWD)	Sensor Connection	RS232 (9-way D) to PC and 4x USB ports for keyboard, mouse, memory stick
Ingress Protection Rating	IP20	Wetted Material	Polypropylene 5 ml test tube
Accessories Included	Instructions, case, 5 mL test pots, bottle adapters, verification standards, Power supply with UK, EU and US power adaptors	Weight	3.6 kg
Operating Pressure	n/a	For Fluid Type	Oil
Options	Various sample bottles and adapters	Communication Interface	PC and Ethernet Connectivity
Sensing Method	Ferrography	Industry	Marine

Product resources

Compliance, Certifications & Safety

SAFETY}-Marine Monitoring Safety Document--MA-K14365-KW (PDF)

Literature and Reference Materials

MANUAL-ANALEX_pql--MA-K18063-KW (PDF)
