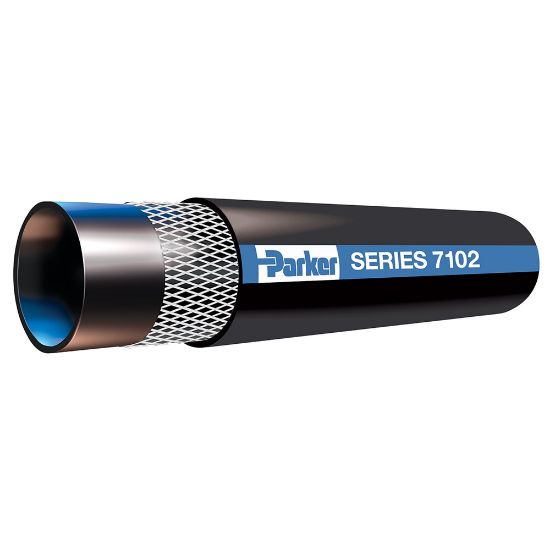

7102-100304 - ARCTIC EDGE™ Low Temperature Multipurpose Oil Resistant Hose, Series 7102

Arctic Edge Low Temperature Oil Resistant Multipurpose Rubber Hose is designed to transfer air, oil, water and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to -70°F and 300 psi, Series 7102

Availability:	Backordered Estimated Lead Time: 108 days
Partner Available:	364 in stock

SKU 7102-100304

$16.89/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Maximum Working Pressure (psi)	300	Specifications Met	N/A
Media	Water	Maximum Operating Temperature	100 °C
Cover Color	Black	Inside Diameter	25.4 mm
Length per Package	300 ft	Package Type	Reel
Hose Inner Tube Material	Black	Weight	0.80 kg/m
Cover Material	Chloroprene Rubber (CR)	Compatible Fitting	HY Series
Minimum Operating Temperature	-70 °F	Maximum Operating Pressure	20.7 bar
Minimum Bend Radius	203.2 mm	Outside Diameter	1.458 inch
Hose Reinforcement Material	4 Plies of Textile with Static Wire

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
