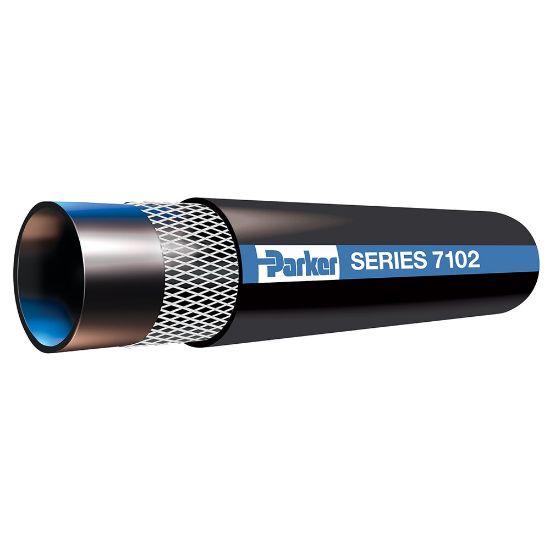

7102-38304 - ARCTIC EDGE™ Low Temperature Multipurpose Oil Resistant Hose, Series 7102

Arctic Edge Low Temperature Oil Resistant Multipurpose Rubber Hose is designed to transfer air, oil, water and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to -70°F and 300 psi, Series 7102

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 7102-38304

$8.06/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	300	Media	Air
Specifications Met	N/A	Maximum Operating Temperature	212 °F
Maximum Operating Pressure	300 psi	Cover Color	Black
Inside Diameter	9.5 mm	Package Type	Reel
Weight	0.21 lb/ft	Outside Diameter	0.750 inch
Cover Material	Chloroprene Rubber (CR)	Compatible Fitting	HY Series
Hose Inner Tube Material	Nitrile	Minimum Operating Temperature	-57 °C
Minimum Bend Radius	96.5 mm	Length per Package	650 ft
Hose Reinforcement Material	4 Plies of Textile with Static Wire

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
