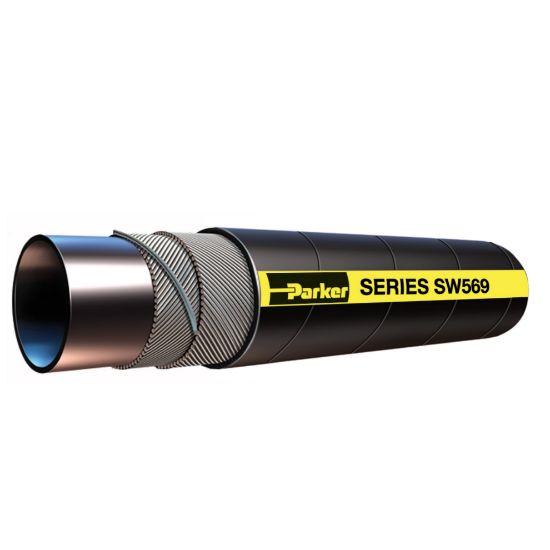

SW569-2000 - ARMADA® Marine Multipurpose Oil Resistant Suction Hose, Series SW569

Name: SW569-2000 - ARMADA® Marine Multipurpose Oil Resistant Suction Hose, Series SW569
SKU: SW569-2000
Price: 24.94 USD
Availability: InStock

Armada Marine Multipurpose Oil Resistant Suction Hose is designed for marine engine fuel supply and venting, hardwall wet exhaust and other applications to 212°F and 75 psi, Series SW569

Availability:

9 in stock

Springfield, MO

Partner Available:

194 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU SW569-2000

$24.94/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Media	Fuels - Check fuel type with our catalogue chart.	Specifications Met	NVW
Weight	0.54 kg/ft	Cover Color	Black
Maximum Operating Temperature	212 °F	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix
Outside Diameter	63 mm	Maximum Operating Pressure	3.4 bar
Inside Diameter	50.8 mm	Hose Inner Tube Material	Black
Minimum Operating Temperature	-20 °F	Minimum Bend Radius	5 inch
Vacuum Pressure Rating	29 Inch-Hg	Cover Material	Chloroprene Rubber (CR)
Design Factor	4:1

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
