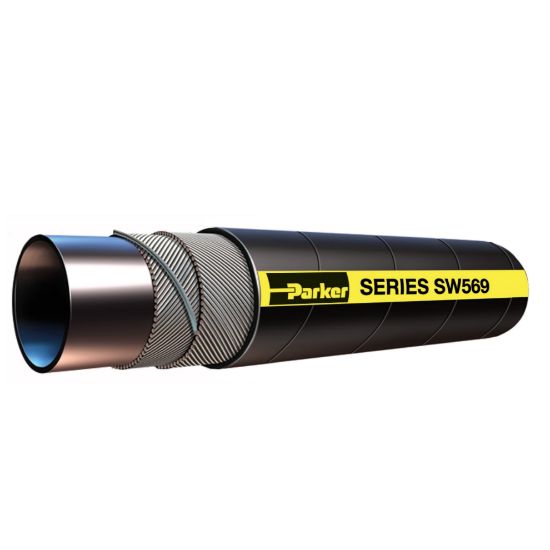

SW569-2875 - ARMADA® Marine Multipurpose Oil Resistant Suction Hose, Series SW569

Armada Marine Multipurpose Oil Resistant Suction Hose is designed for marine engine fuel supply and venting, hardwall wet exhaust and other applications to 212°F and 75 psi, Series SW569

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	47 in stock

SKU SW569-2875

$40.91/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2-7/8
Outside Diameter	84.6 mm	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix
Vacuum Pressure Rating	737 mm-Hg	Minimum Operating Temperature	-29 °C
Specifications Met	SAE J20R5, Class B	Inside Diameter	2-7/8 inch
Minimum Bend Radius	8 inch	Hose Inner Tube Material	Nitrile
Weight	0.76 kg/ft	Maximum Operating Pressure	2.8 bar
Cover Material	Chloroprene Rubber (CR)	Design Factor	4:1
Media	Fuels - Check fuel type with our catalogue chart.	Cover Color	Black
Maximum Operating Temperature	212 °F

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
