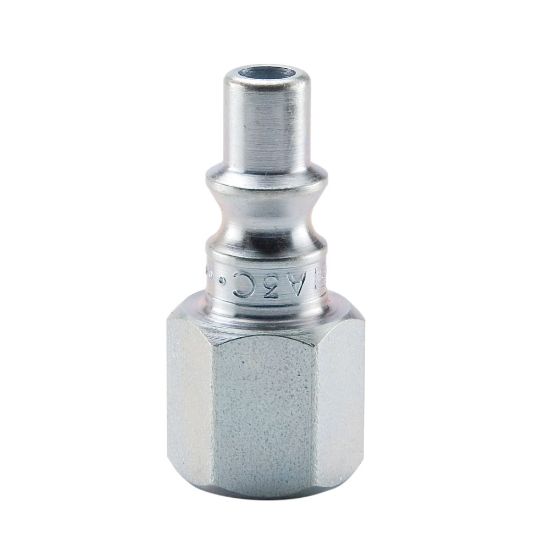

A3C - ARO 210 Interchange, Quick Connect Air Couplings - 50 Series

Parker's general purpose pneumatic, air quick connect couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:

89 in stock

Olivette, MO	56
TOPEKA, KS	10
Springfield, MO	5
COLUMBIA, MO	3
Kansas City, KS	3
Joplin, MO	3
Peoria, IL	3
WICHITA, KS	2
Olivette, MO	2
Decatur, IL	2

Partner Available:

1569 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU A3C

$4.20/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Hose I.D. (inch)	na	Connection Thread Size (inch)	1/4 - 18
Connection Type	Female NPTF	Minimum Operating Temperature	-40 °F
Body Material	Steel	Maximum Operating Temperature	250 °F
Hex Size	0.62 inch	Valve Type	Unvalved
Plating Type	Zinc with clear trivalent chromate	Maximum Operating Pressure	300 psi
Body Size	1/4 inch	Dimensional Weight	0.013329336530775381 lb
Interchange Type	Interchangeable with ARO’s 210 series

California Residents: Prop-65 Warning

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
