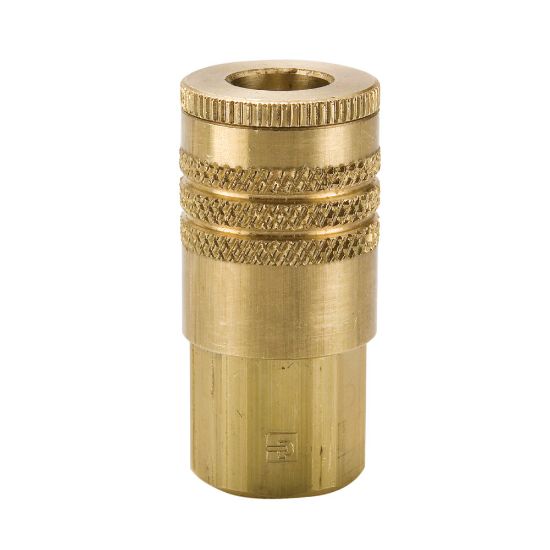

Picture of ARO 210 Interchange, Quick Connect Air Couplings - 50 Series - B53E

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

ARO 210 Interchange, Quick Connect Air Couplings - 50 Series - B53E

Parker's general purpose pneumatic, air quick connect couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU B53E
$25.61
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAHose I.D. (inch)na
Connection Thread Size (inch)3/8 - 18Coupling HalfFemale Coupler
Connection TypeFemale NPTFMinimum Operating Temperature-40 °F
Body MaterialBrassDivisionQuick Coupling Division
Seal MaterialNitrileMaximum Operating Temperature250 °F
Product TypeManual ConnectMaximum Operating Pressure300 psi
Body Size1/4 inchValve TypeTubular
Hex Size0.81 inchDimensional Weight0.02670863309352518 lb
Interchange TypeInterchangeable with ARO’s 210 seriesApplicationAir Compressors
