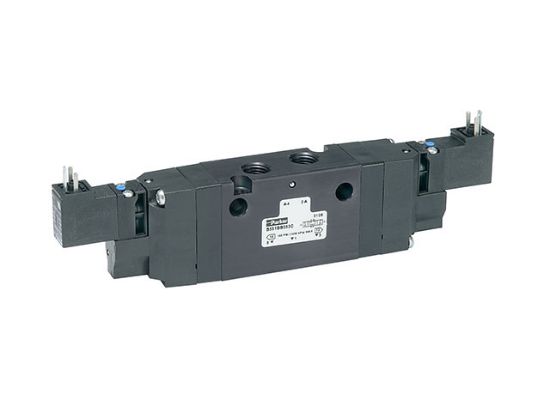

B350BB549C - B Series Double Solenoid 4-way 3-position Valve

B Series Double Solenoid 4-way 3-position Valve

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	13 in stock

SKU B350BB549C

$268.39/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Offset Return Type	Spring Return
Override Type	Non-locking	Pkg Qty	1
UOM	EA	Solenoid Voltage	24VDC
CV Factor	0.6	Port	1/8 NPT
Pilot Supply	Internal	Operator Type Detail	Double
Center Condition	All Ports Blocked	Port Inch/BSP	NPT
Center Condition	All Ports Blocked	Parker Division	Pneumatic
Supply Pressure Range	30 to 145 PSIG (2.1 to 10 bar)	Solenoid Voltage	24VDC
Valve Passages	4-way	Override Type	Non-locking
Parker Group	Automation	Operating Temperature	-15°C to 49°C (5°F to 120°F)
Solenoid Connection	15mm 3-Pin DIN 43650C	Pilot Supply	Internal
CV Factor	0.6	Valve Positions	3-position
Offset Return Type	Spring Return	Series	B
Operator Type	Solenoid	Port	1/8 NPT
Pneumatic Valve Type	Inline Valve	Operator Type Detail	Double

Product resources
