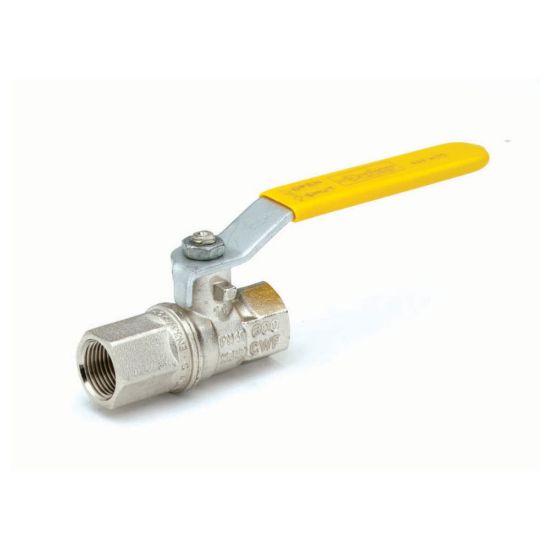

BVG4-1.1/2L - Ball Valve Series BVGL & BVGLOCK - Long Female Threads

BVGL & BVGLOCK series ball valves feature a nickel plated brass body and a chrome plated brass ball and are manufactured with long female threads.

Availability:	Backordered Estimated Lead Time: 64 days
Partner Available:	4 in stock

SKU BVG4-1.1/2L

$366.81/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Handle	Lever
Flow Diameter (mm)	40	Locking Mechanism	Non-Locking
Thread Size (Inch)	1 1/2	Minimum Operating Temperature	-40 °C
Mounting Type	Inline	Seal Material	PTFE
Maximum Flow Rate	n/a	Actuation Type	Manual
Orifice Size	40 mm	Seat Material	PTFE
Connection Type	BSPP	Configuration	Female to Female
Function	Ball Valve	Handle Type	Lever
Body Material	Nickel-Plated Brass	Connection Size	Varies
Maximum Operating Pressure	40 bar	Maximum Operating Temperature	170 °C
Shape	Inline	Vented	No
Thread Size	BSPP	Ball Material	Chrome-Plated Brass
Product Style	Female to Female	Operation Type	On/Off
