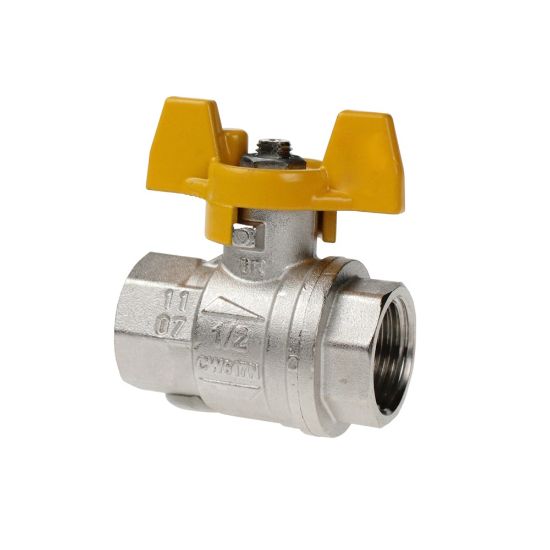

Ball Valve Series BVGL & BVGLOCK - Long Female Threads - BVGT4-3/4L

Name: Ball Valve Series BVGL & BVGLOCK - Long Female Threads - BVGT4-3/4L
SKU: BVGT4-3/4L

BVGL & BVGLOCK series ball valves feature a nickel plated brass body and a chrome plated brass ball and are manufactured with long female threads.

Availability:

Backordered

SKU BVGT4-3/4L

$149.47

Products specifications

Attribute name	Attribute value
UOM	EA	Handle	Compact
Flow Diameter (mm)	20	Locking Mechanism	Non-Locking
Thread Size (Inch)	3/4	Division	Fluid System Connectors Division
Minimum Operating Temperature	-40 °F	Mounting Type	Inline
Seal Material	PTFE	Maximum Flow Rate	n/a
Actuation Type	Manual	Seat Material	PTFE
Maximum Operating Pressure	580 psi	Connection Type	BSPP
Configuration	Female to Female	Function	Ball Valve
Handle Type	Compact	Product Type	Ball Valve
Body Material	Nickel-Plated Brass	Connection Size	Varies
Maximum Operating Temperature	170 °C	Shape	Inline
Vented	No	Thread Size	BSPP
Orifice Size	20 mm	Ball Material	Chrome-Plated Brass
Product Style	Female to Female	Operation Type	On/Off
