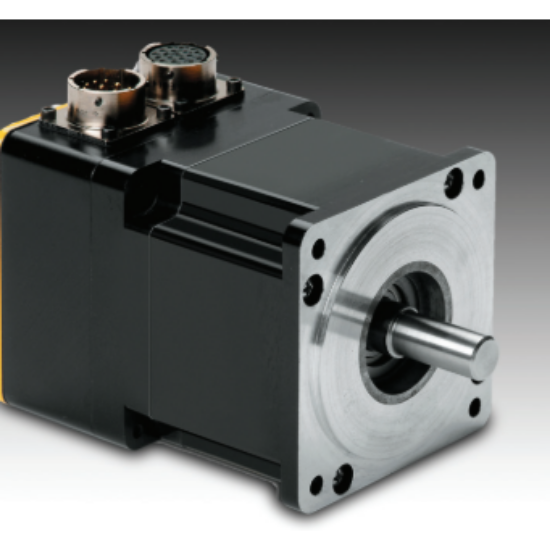

BE161CJ-NFLN

Features

• NEMA 16, 23, and 34 sizes From 1.4 to 46.8 in-lb (5.24 Nm) continuous torque
• Brushless construction
• Eight-pole open-lamination design provides increased torque and lower cost
• High torque density packaging
• Bridged stator design – quiet operation
• High performance neodymium magnets
• Thermoswitch protection on NEMA 23 and 34 sizes
• 2000 line encoder standard (8000 ppr post-quad)
• Resolver feedback option
• Several connector design choices
• Holding brake option available on size 34, custom order on size 23
• Custom modifications available
• Industry-leading 10-day delivery
• Two year warranty
