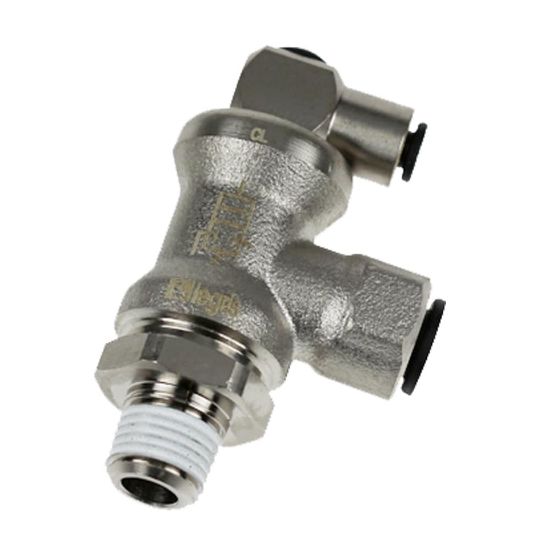

FC601-8M-6R - Blocking Valves

Parker's blocking valves prevents damage to work and equipment in the event of a loss of pressure.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU FC601-8M-6R

$376.46/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Push-to-Connect
Body Material	Treated Brass	Connection 1 Tube Outside Diameter	8 mm
Connection 2 Size	BSPT	Minimum Operating Temperature	-4 °F
Media	Compressed Air	Gripping Ring Material	Stainless Steel
Pilot Line Thread Size	N/A	Connection 1 Size	Push-to-connect
Maximum Operating Temperature	160 °F	Connection 2 Thread Size	N/A
Product Style	Tube to Pipe	Seal Material	Nitrile
Maximum Operating Pressure	10 bar	Connection 1 Thread Size	N/A
