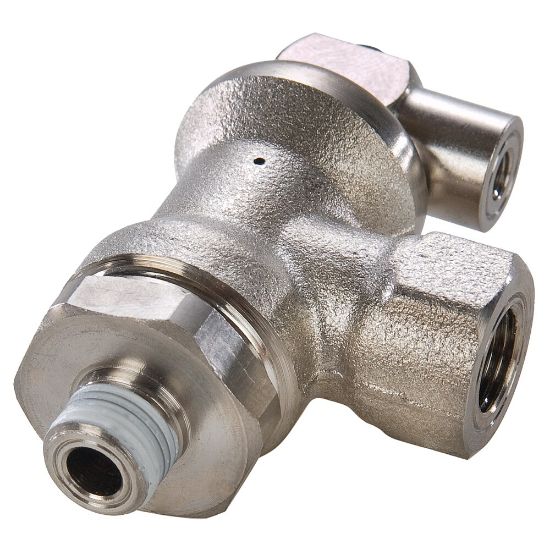

FC602-8 - Blocking Valves

Name: FC602-8 - Blocking Valves
SKU: FC602-8
Price: 157.42 USD
Availability: InStock

Parker's blocking valves prevents damage to work and equipment in the event of a loss of pressure.

Availability:

4 in stock

TOPEKA, KS

Partner Available:

6 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FC602-8

$157.42/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Female Pipe to Male Pipe
Connection 1 Size	Female NPT	Connection 1 Thread Size	1/2 inch
Maximum Operating Temperature	70 °C	Connection 2 Thread Size	1/2 inch
Connection 2 Size	NPT	Pilot Line Thread Size	N/A
Connection 1 Tube Outside Diameter	N/A	Media	Compressed Air
Gripping Ring Material	Stainless Steel	Body Material	Treated Brass
Shape	Threaded Port	Seal Material	Nitrile
Minimum Operating Temperature	-20 °C	Maximum Operating Pressure	145 psi
