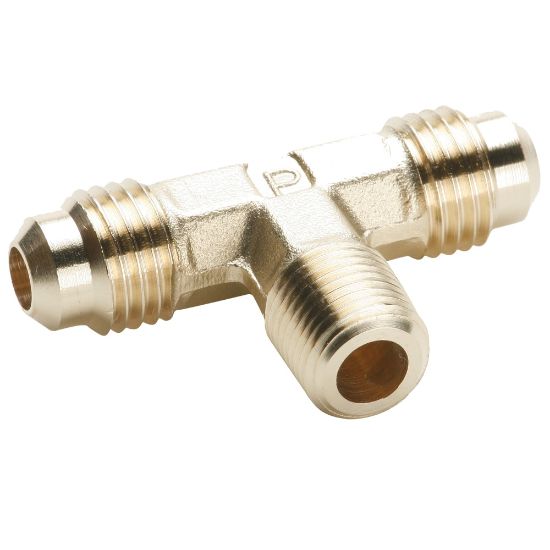

145F-8-8 - Brass 45° Flare Fittings

Name: 145F-8-8 - Brass 45° Flare Fittings
SKU: 145F-8-8
Price: 36.07 USD
Availability: LimitedAvailability

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:

1 Limited Stock

TOPEKA, KS

Partner Available:

152 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 145F-8-8

$36.07/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Branch Tee
Connection 1 Type	Flare	Connection 2 Type	Flare
Connection 1 Thread Size	3/4-16 inch	Connection 2 Thread Size	3/4-16 inch
Connection 1 Tube Outside Diameter	1/2 inch	Connection 2 Tube Outside Diameter	1/2 inch
Product Style	Flare to Pipe	Connection 3 Type	Male Pipe
Connection 3 Thread Size	1/2 inch	Connection 3 Tube Outside Diameter	NA
Body Material	Brass	Maximum Operating Temperature	250 °F
O-Ring Material	Fluorocarbon	Minimum Operating Temperature	-53 °C
Specifications Met	SAE J512, SAE J513	Maximum Operating Pressure	750 psi
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
