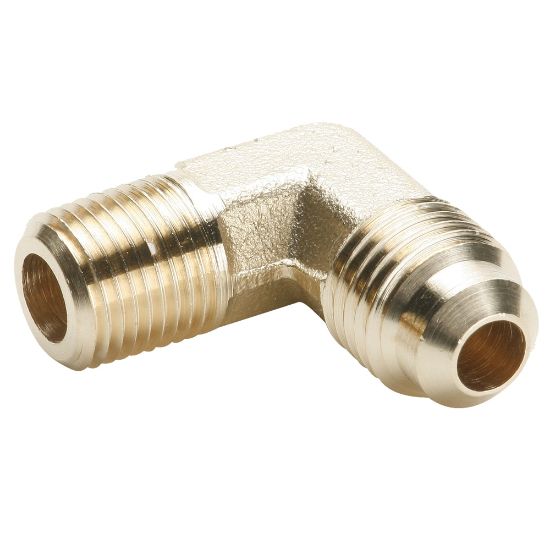

149F-2-2 - Brass 45° Flare Fittings

Name: 149F-2-2 - Brass 45° Flare Fittings
SKU: 149F-2-2
Price: 8.32 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:

66 in stock

Kansas City, KS

Partner Available:

136 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 149F-2-2

$8.32/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Type	Male Pipe
Connection 1 Type	Flare	Product Style	Flare to Pipe
Connection 1 Thread Size	5/16-24 inch	Connection 1 Tube Outside Diameter	1/8 inch
Connection 3 Tube Outside Diameter	NA	Shape	90° Forged Elbow
Connection 3 Type	NA	Connection 2 Thread Size	1/8 inch
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
Body Material	Brass	Maximum Operating Temperature	250 °F
O-Ring Material	Fluorocarbon	Minimum Operating Temperature	-53 °C
Dimensional Weight	0.11037769784172662 lb	Specifications Met	SAE J512, SAE J513
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Maximum Operating Pressure	193.0 bar
