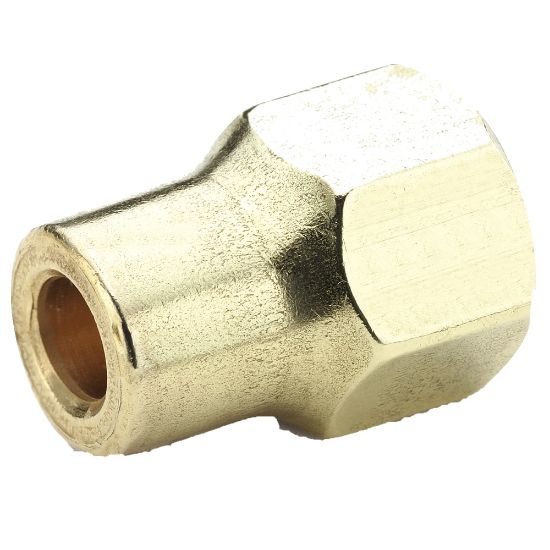

Brass 45° Flare Fittings - 14FL-4

Name: Brass 45° Flare Fittings - 14FL-4
SKU: 14FL-4

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:

Backordered

SKU 14FL-4

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Flare
Connection 1 Thread Size	7/16-20 inch	Connection 1 Tube Outside Diameter	1/4 inch
Connection 3 Tube Outside Diameter	NA	Shape	Long Forged Nut
Product Style	Flare	Connection 2 Type	NA
Connection 3 Type	NA	Connection 2 Thread Size	NA
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
Brand	PARKER	Division	Fluid System Connectors Division
Body Material	Brass	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	O-Ring Material	Fluorocarbon
Maximum Operating Temperature	250	Minimum Operating Temperature	-65
Application	Pumps, Gas Grills, Coffee Makers, Adapters	Specifications Met	SAE J512, SAE J513
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Maximum Operating Pressure	2800
