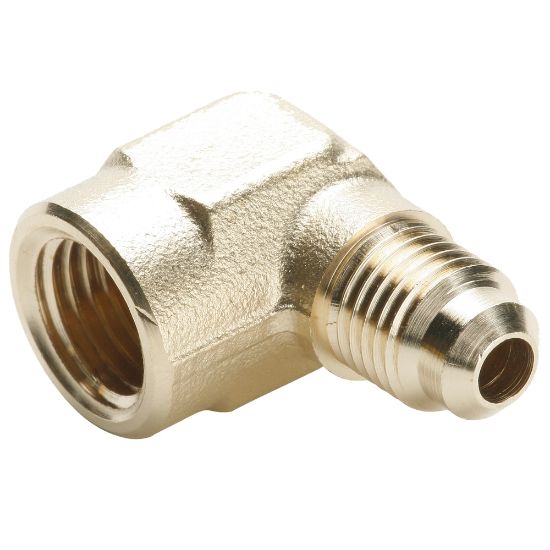

150F-4-2 - Brass 45° Flare Fittings

Name: 150F-4-2 - Brass 45° Flare Fittings
SKU: 150F-4-2
Price: 4.42 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:

35 in stock

Olivette, MO	34
TOPEKA, KS	1

Partner Available:

153 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 150F-4-2

$4.42/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Type	Female Pipe
Connection 1 Type	Flare	Connection 1 Thread Size	7/16-20 inch
Connection 1 Tube Outside Diameter	1/4 inch	Connection 3 Tube Outside Diameter	NA
Shape	90° Forged Elbow	Connection 3 Type	NA
Connection 2 Thread Size	1/8 inch	Connection 3 Thread Size	NA
Connection 2 Tube Outside Diameter	NA	Product Style	Flare to Female Pipe
Body Material	Brass	Maximum Operating Temperature	250 °F
O-Ring Material	Fluorocarbon	Minimum Operating Temperature	-53 °C
Specifications Met	SAE J512, SAE J513	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Nut Material	Brass	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Maximum Operating Pressure	1,400 psi	Dimensional Weight	0.5518884892086331 lb
