*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

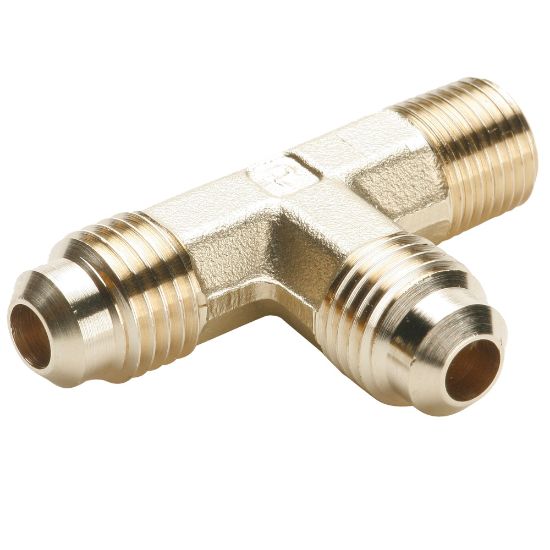

151F-4-2 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 151F-4-2

$7.71/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Run Tee
Connection 2 Type	Male Pipe	Connection 1 Type	Flare
Connection 3 Type	Flare	Connection 1 Thread Size	7/16-20 inch
Connection 3 Thread Size	7/16-20 inch	Connection 1 Tube Outside Diameter	1/4 inch
Connection 3 Tube Outside Diameter	1/4 inch	Product Style	Flare to Pipe
Connection 2 Thread Size	1/8 inch	Connection 2 Tube Outside Diameter	NA
Body Material	Brass	Maximum Operating Temperature	250 °F
O-Ring Material	Fluorocarbon	Minimum Operating Temperature	-53 °C
Dimensional Weight	0.11037769784172662 lb	Specifications Met	SAE J512, SAE J513
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Maximum Operating Pressure	96.5 bar
