*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

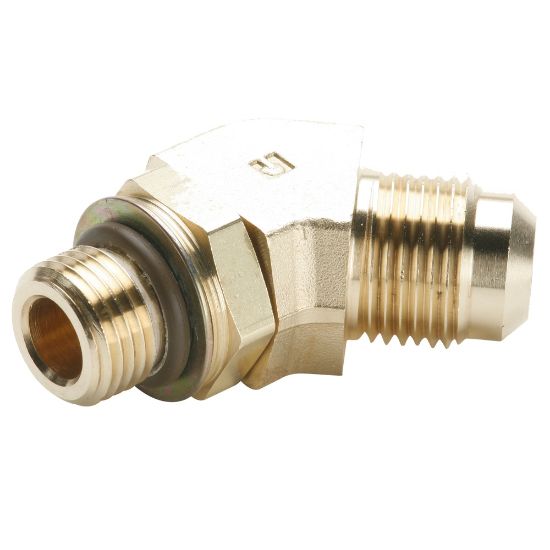

Brass 45° Flare Fittings - 1595F-8-8

Name: Brass 45° Flare Fittings - 1595F-8-8
SKU: 1595F-8-8

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:

Backordered

SKU 1595F-8-8

$30.53

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Flare
Connection 1 Thread Size	3/4-16 inch	Connection 1 Tube Outside Diameter	1/2 inch
Connection 3 Tube Outside Diameter	NA	Connection 2 Type	SAE Straight Thread
Connection 3 Type	NA	Connection 2 Thread Size	1/2 inch
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
Shape	45° Forged Elbow	Product Style	Flare to Straight Thread
Brand	PARKER	Division	Fluid System Connectors Division
Body Material	Brass	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Maximum Operating Temperature	250 °F
O-Ring Material	Fluorocarbon	Minimum Operating Temperature	-53 °C
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Specifications Met	SAE J512, SAE J513
Maximum Operating Pressure	51.7 bar	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Nut Material	Brass	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
