Brass 45° Flare Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Flare fittings are appropriate alternatives for solder type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications. Fittings meet functional requirements of SAE J512 and J513.
Markets:
• Refrigeration
• Heavy Duty Truck
• Mobile
• Industrial
• Heating
• Air conditioning
Features/Benefits:
• All brass construction
• Forged nuts for refrigeration applications
• Long nuts for vibration
• U.L. listed for flammable liquids
• Functional requirements of SAE J512 & SAE J513
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Refrigerant lines
• Propane lines
• Fuels
• Natural Gas
• Oil burners
• Adapters
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 2 Type | Connection 1 Type | Connection 1 Thread Size | Connection 1 Tube Outside Diameter | Product Style | Connection 3 Tube Outside Diameter | Connection 3 Type | Connection 2 Thread Size | Connection 3 Thread Size | Connection 2 Tube Outside Diameter | Shape | Body Material | O-Ring Material | Maximum Operating Temperature | Minimum Operating Temperature | Specifications Met | Media | Nut Material | Tube Material | Maximum Operating Pressure | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

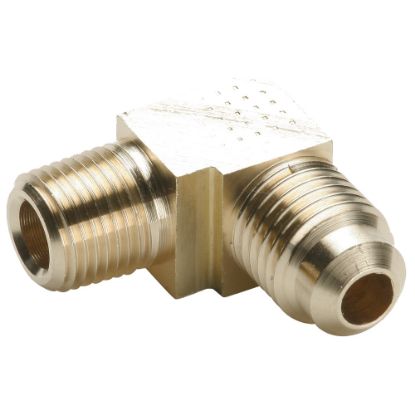

| 249F-5-2 | 17 in stock | 18 in stock | $69.12/each | EA | Male Pipe | Flare | 1/2-20 inch | 5/16 inch | Flare to Pipe | NA | NA | 1/8 inch | NA | NA | 90° Extruded Elbow | Brass | Fluorocarbon | 250 | -65 | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,200 | ||
| 249F-5-4 | 14 in stock | 2 Limited Stock | POR | EA | Male Pipe | Flare | 1/2-20 inch | 5/16 inch | Flare to Pipe | NA | NA | 1/4 inch | NA | NA | 90° Extruded Elbow | Brass | Fluorocarbon | 250 °F | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 82.7 bar | ||
| 249F-6-2 | Backordered | 34 in stock | $21.58/each | EA | Male Pipe | Flare | 5/8-18 inch | 3/8 inch | Flare to Pipe | NA | NA | 1/8 inch | NA | NA | 90° Extruded Elbow | Brass | Fluorocarbon | 250 | -65 | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,000 | ||
| 249F-6-4 | 17 in stock | 133 in stock | $18.99/each | EA | Male Pipe | Flare | 5/8-18 inch | 3/8 inch | Flare to Pipe | NA | NA | 1/4 inch | NA | NA | 90° Extruded Elbow | Brass | Fluorocarbon | 250 | -65 | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,000 | 0.05518884892086331 | |
| 249F-6-6 | Backordered | 148 in stock | $12.02/each | EA | Male Pipe | Flare | 5/8-18 inch | 3/8 inch | Flare to Pipe | NA | NA | 3/8 inch | NA | NA | 90° Extruded Elbow | Brass | Fluorocarbon | 250 °F | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,000 psi | 0.11037769784172662 lb | |
| 249F-6-8 | 2 Limited Stock | 33 in stock | $45.76/each | EA | Male Pipe | Flare | 5/8-18 inch | 3/8 inch | Flare to Pipe | NA | NA | 1/2 inch | NA | NA | 90° Extruded Elbow | Brass | Fluorocarbon | 250 °F | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,000 psi | ||
| 249F-8-6 | Backordered | 45 in stock | $12.02/each | EA | Male Pipe | Flare | 3/4-16 inch | 1/2 inch | Flare to Pipe | NA | NA | 3/8 inch | NA | NA | 90° Extruded Elbow | Brass | Fluorocarbon | 250 | -65 | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 750 | 0.11037769784172662 | |
| 249F-8-8 | 22 in stock | 6 in stock | $45.11/each | EA | Male Pipe | Flare | 3/4-16 inch | 1/2 inch | Flare to Pipe | NA | NA | 1/2 inch | NA | NA | 90° Extruded Elbow | Brass | Fluorocarbon | 250 | -65 | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 750 | ||
| 256F-4-2 | Backordered | Backordered | POR | EA | Flare | Flare | 7/16-20 inch | 1/4 inch | Flare to Pipe | NA | Male Pipe | 1/4 inch | 1/8 inch | NA | Adapter Tee | Brass | Fluorocarbon | 250 °F | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,400 psi | ||

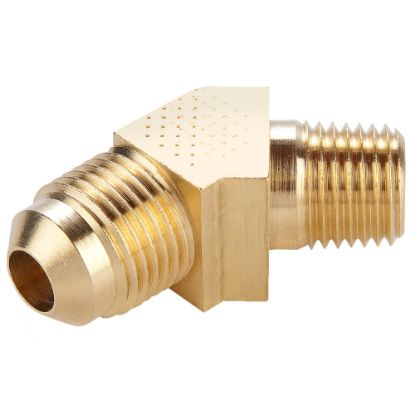

| 259F-4-2 | 5 in stock | 2 Limited Stock | $13.64/each | EA | Male Pipe | Flare | 7/16-20 inch | 1/4 inch | Flare to Pipe | NA | NA | 1/8 inch | NA | NA | 45° Extruded Elbow | Brass | Fluorocarbon | 121 °C | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 96.5 bar | ||
| 259F-4-4 | Backordered | 1 Limited Stock | $10.31/each | EA | Male Pipe | Flare | 7/16-20 inch | 1/4 inch | Flare to Pipe | NA | NA | 1/4 inch | NA | NA | 45° Extruded Elbow | Brass | Fluorocarbon | 121 °C | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 96.5 bar | ||
| 259F-6-4 | Backordered | Backordered | POR | EA | Male Pipe | Flare | 5/8-18 inch | 3/8 inch | Flare to Pipe | NA | NA | 1/4 inch | NA | NA | 45° Extruded Elbow | Brass | Fluorocarbon | 121 °C | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 68.9 bar | ||
| 259F-6-6 | Backordered | 46 in stock | $16.39/each | EA | Male Pipe | Flare | 5/8-18 inch | 3/8 inch | Flare to Pipe | NA | NA | 3/8 inch | NA | NA | 45° Extruded Elbow | Brass | Fluorocarbon | 250 °F | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,000 psi | ||
| 259F-8-6 | Backordered | 20 in stock | $13.89/each | EA | Male Pipe | Flare | 3/4-16 inch | 1/2 inch | Flare to Pipe | NA | NA | 3/8 inch | NA | NA | 45° Extruded Elbow | Brass | Fluorocarbon | 250 °F | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 750 psi | ||

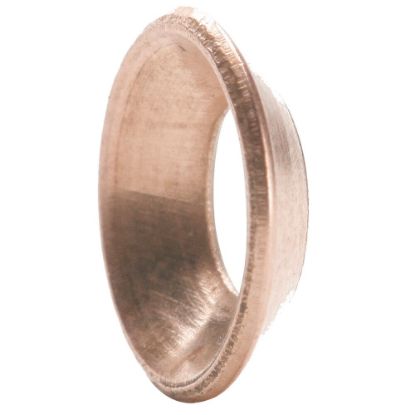

| 2GF-10 | 10 in stock | 81 in stock | $3.75/each | EA | NA | Flare | NA | 5/8 inch | Flare | NA | NA | NA | NA | NA | Flare Gasket | Brass | Fluorocarbon | 250 °F | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 2800 psi | ||
| 2GF-12 | 4 in stock | 25 in stock | $5.34/each | EA | NA | Flare | NA | 3/4 inch | Flare | NA | NA | NA | NA | NA | Flare Gasket | Brass | Fluorocarbon | 121 °C | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 193 bar | ||
| 2GF-3 | Backordered | 3 in stock | $1.66/each | EA | NA | Flare | NA | 3/16 inch | Flare | NA | NA | NA | NA | NA | Flare Gasket | Brass | Fluorocarbon | 121 °C | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 193 bar | ||
| 2GF-4 | 8015 in stock | 173 in stock | $1.26/each | EA | NA | Flare | NA | 1/4 inch | Flare | NA | NA | NA | NA | NA | Flare Gasket | Brass | Fluorocarbon | 250 °F | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 2800 psi | 0.027594424460431654 lb | |
| 2GF-5 | 29 in stock | 3 in stock | $1.79/each | EA | NA | Flare | NA | 5/16 inch | Flare | NA | NA | NA | NA | NA | Flare Gasket | Brass | Fluorocarbon | 121 °C | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 193 bar | ||
| 2GF-6 | 500 in stock | 160 in stock | $1.91/each | EA | NA | Flare | NA | 3/8 inch | Flare | NA | NA | NA | NA | NA | Flare Gasket | Brass | Fluorocarbon | 250 °F | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,000 psi | 0.051258992805755396 lb |
