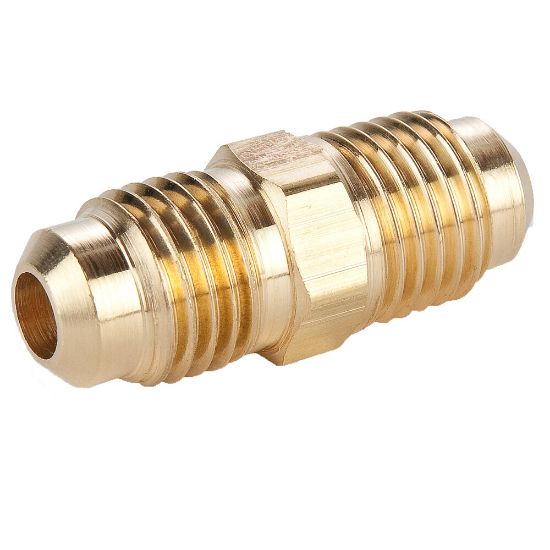

42F-6 - Brass 45° Flare Fittings

Name: 42F-6 - Brass 45° Flare Fittings
SKU: 42F-6
Price: 4.51 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:

22 in stock

Olivette, MO	7
Springfield, MO	5
COLUMBIA, MO	2
Kansas City, KS	2
Peoria, IL	2
Decatur, IL	2
Wichita, KS	1
Olivette, MO	1

Partner Available:

358 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 42F-6

$4.51/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Flare to Flare
Connection 1 Type	Flare	Connection 2 Type	Flare
Connection 1 Thread Size	5/8-18 inch	Connection 2 Thread Size	5/8-18 inch
Connection 1 Tube Outside Diameter	3/8 inch	Connection 2 Tube Outside Diameter	3/8 inch
Connection 3 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 3 Thread Size	NA	Shape	Union
Body Material	Brass	O-Ring Material	Fluorocarbon
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-53 °C
Dimensional Weight	0.27594424460431655 lb	Specifications Met	SAE J512, SAE J513
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Maximum Operating Pressure	1,000 psi
