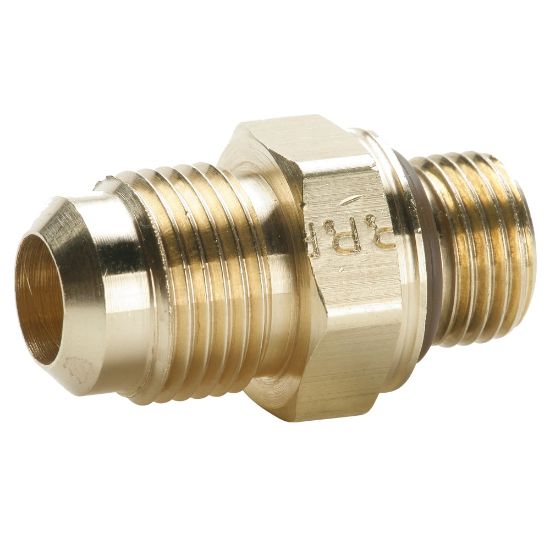

485F-12-12 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Backordered Estimated Lead Time: 24 days
Partner Available:	10 in stock

SKU 485F-12-12

$52.99/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Connector
Connection 1 Type	Flare	Connection 3 Tube Outside Diameter	NA
Connection 2 Type	SAE Straight Thread	Connection 3 Type	NA
Connection 2 Thread Size	1-1/16-14 inch	Connection 3 Thread Size	NA
Connection 1 Tube Outside Diameter	3/4 inch	Connection 2 Tube Outside Diameter	NA
Product Style	Flare to Straight Thread	Connection 1 Thread Size	1-1/16-12 inch
Body Material	Brass	Maximum Operating Temperature	250 °F
O-Ring Material	Fluorocarbon	Minimum Operating Temperature	-65 °F
Specifications Met	SAE J512, SAE J513	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Nut Material	Brass	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Maximum Operating Pressure	550 psi
