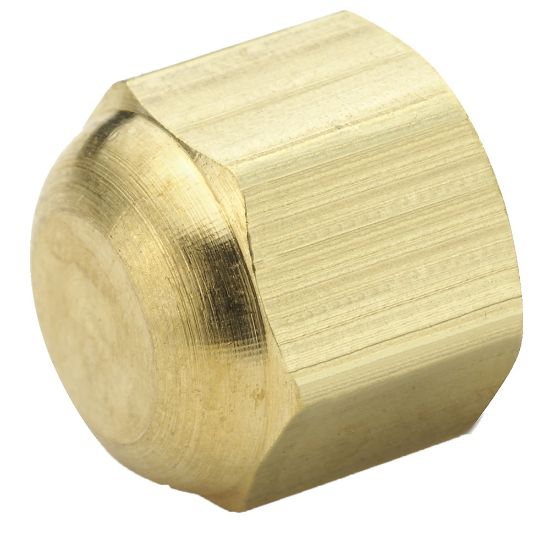

640F-8 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	245 in stock

SKU 640F-8

$4.83/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube Outside Diameter	NA
Connection 2 Type	NA	Connection 1 Thread Size	3/4-16 inch
Connection 3 Thread Size	NA	Connection 3 Type	NA
Connection 1 Type	Flare	Product Style	Flare
Connection 1 Tube Outside Diameter	1/2 inch	Shape	Cap
Connection 2 Thread Size	NA	Connection 3 Tube Outside Diameter	NA
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Body Material	Brass
O-Ring Material	Fluorocarbon	Specifications Met	SAE J512, SAE J513
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Maximum Operating Temperature	121 °C
Maximum Operating Pressure	51.7 bar	Minimum Operating Temperature	-65 °F
Nut Material	Brass	Dimensional Weight	0.11037769784172662 lb
