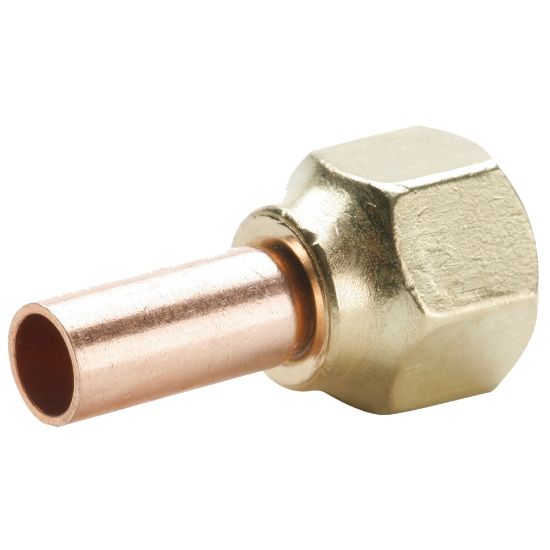

US5-4 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Backordered Estimated Lead Time: 32 days
Partner Available:	Backordered

SKU US5-4

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Thread Size	7/16-20 inch
Connection 3 Thread Size	NA	Connection 2 Type	Tube Stem
Connection 2 Tube Outside Diameter	1/4 inch	Connection 2 Thread Size	1/4 inch
Connection 1 Tube Outside Diameter	1/4 inch	Connection 3 Type	NA
Shape	Flare Adapter	Connection 1 Type	Flare Nut
Product Style	Flare to Tube Stem	Connection 3 Tube Outside Diameter	NA
Maximum Operating Pressure	2800	O-Ring Material	Fluorocarbon
Specifications Met	SAE J512, SAE J513	Body Material	Brass
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Maximum Operating Temperature	250
Nut Material	Brass	Minimum Operating Temperature	-65
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
