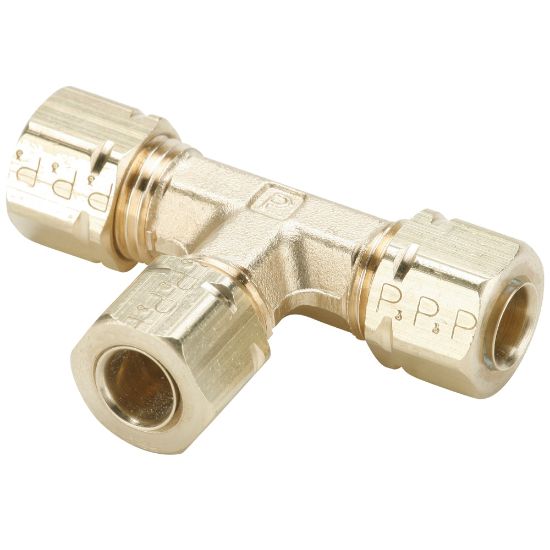

164CA-10 - Brass Compression Fittings, Compress-Align

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	7 in stock

SKU 164CA-10

$60.66/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Connection 1 Tube Outside Diameter	5/8" (O.D.)	Configuration	Tube to Tube
Body Material	Brass, Forged	Connection 1 Type	Compression
Connection 2 Type	Compression	Connection 2 Tube Outside Diameter	5/8" (O.D.)
Body Material	Brass	Connection Type	NPTF
Maximum Operating Temperature	121 °C	Maximum Operating Pressure	2800 psi
Nut Material	Brass	Media	Water, air, inert and non-combustible gasses
Minimum Operating Temperature	-54 °C	Tube Material	Copper, Aluminum, TFE, FEA, PFA, Thermoplastic
Sleeve Material	Brass
