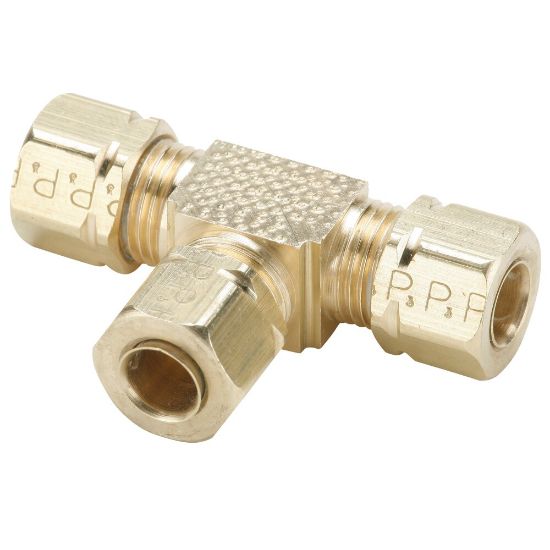

264CA-3 - Brass Compression Fittings, Compress-Align

Name: 264CA-3 - Brass Compression Fittings, Compress-Align
SKU: 264CA-3
Price: 17.60 USD
Availability: LimitedAvailability

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Availability:

4 in stock

Kansas City, KS	2
Decatur, IL	2

Partner Available:

17 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 264CA-3

$17.60/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Configuration	Tube to Tube	Connection 1 Type	Compression
Connection 2 Type	Compression	Connection 1 Tube Outside Diameter	3/16" (O.D.)
Connection 2 Tube Outside Diameter	3/16" (O.D.)	Body Material	Brass, Extruded
Body Material	Brass	Connection Type	NPTF
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-65 °F
Maximum Operating Pressure	2800 psi	Nut Material	Brass
Media	Water, air, inert and non-combustible gasses	Tube Material	Copper, Aluminum, TFE, FEA, PFA, Thermoplastic
Sleeve Material	Brass
