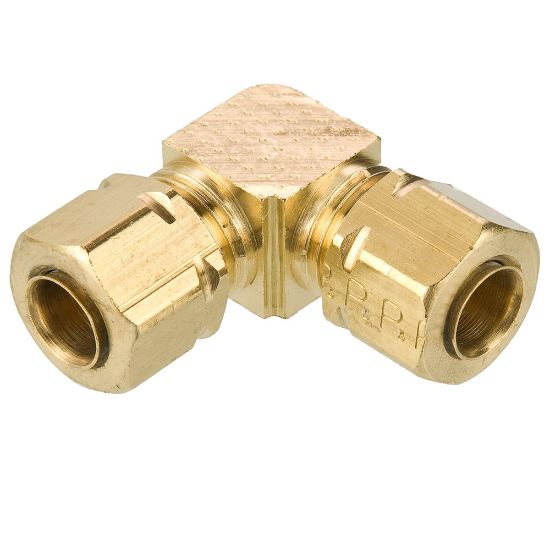

Picture of Brass Compression Fittings, Compress-Align - 265CA-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass Compression Fittings, Compress-Align - 265CA-4

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.
Availability:
26 in stock
Kansas City, KS26
SKU 265CA-4
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAShapeElbow 90°
ConfigurationTube to TubeConnection 1 TypeCompression
Connection 2 TypeCompressionConnection 1 Tube Outside Diameter1/4" (O.D.)
Connection 2 Tube Outside Diameter1/4" (O.D.)Body MaterialBrass, Extruded
DivisionFluid System Connectors DivisionBody MaterialBrass
Maximum Operating Temperature250 °FConnection TypeNPTF
Maximum Operating Pressure2800 psiNut MaterialBrass
MediaWater, air, inert and non-combustible gassesApplicationCompressors, Machine Tools, Dispensing, Pumps, Purification
Minimum Operating Temperature-54 °CTube MaterialCopper, Aluminum, TFE, FEA, PFA, Thermoplastic
Sleeve MaterialBrass
