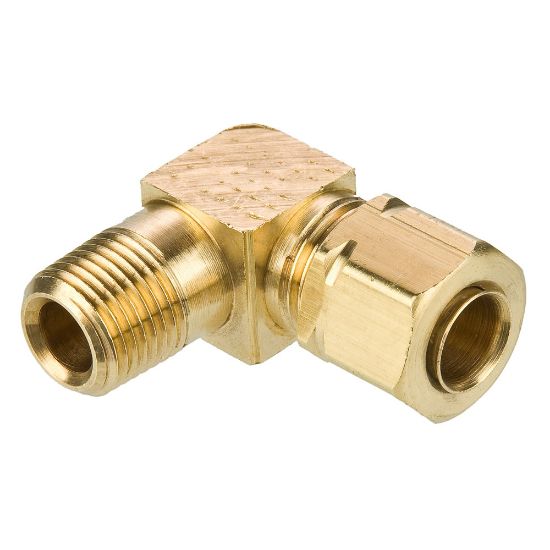

Picture of Brass Compression Fittings, Compress-Align - 269CA-5-2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass Compression Fittings, Compress-Align - 269CA-5-2

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.
Availability:
Backordered
SKU 269CA-5-2
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAShapeElbow 90°
Connection 2 TypeMale PipeConnection 2 Thread Size1/8"
Connection 1 TypeCompressionConnection 1 Tube Outside Diameter5/16" (O.D.)
ConfigurationTube to PipeBody MaterialBrass, Extruded
DivisionFluid System Connectors DivisionBody MaterialBrass
For Fluid TypeWaterConnection TypeNPTF
Maximum Operating Temperature121 °CMaximum Operating Pressure2800 psi
Minimum Operating Temperature-54 °CApplicationCompressors
Tube MaterialPFAMaterials of ConstructionBrass (Sleeve)
