*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

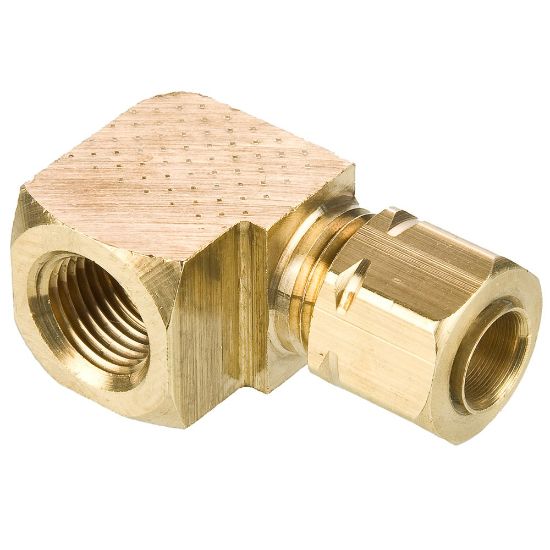

270CA-4-2 - Brass Compression Fittings, Compress-Align

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Availability:	Backordered Estimated Lead Time: 17 days
Partner Available:	32 in stock

SKU 270CA-4-2

$23.95/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Elbow 90°
Connection 2 Type	Female Pipe	Connection 2 Thread Size	1/8"
Connection 1 Type	Compression	Connection 1 Tube Outside Diameter	1/4" (O.D.)
Configuration	Tube to Female Pipe	Body Material	Brass, Extruded
Body Material	Brass	For Fluid Type	Water
Connection Type	NPTF	Maximum Operating Temperature	121 °C
Maximum Operating Pressure	2800 psi	Minimum Operating Temperature	-54 °C
Tube Material	Aluminum	Materials of Construction	Brass (Sleeve)

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
