Brass Compression Fittings, Compress-Align
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's economical Compress-Align fittings are pre-assembled with a captive sleeve which is always oriented correctly for faster assembly. The captive sleeve gives a visible inspection before and after installation and the design of the sleeve aligns to seal even out-of-round tubing. Compress-Align can be used in many areas where flare fittings are used due to the higher pressure rating, meaning no flaring, soldering or tube preparation resulting in faster installation. Compress-Align bodies are interchangeable with standard compression bodies so inventory is decreased.
Use with copper, aluminum and the following Parker Parflex Division tubing.
• Polyethylene
• Nylon
• Polypropylene
• PTFE
• FEP
• PFA
Markets:
• Industrial
• Pneumatic
• Packaging
• Automation
• Chemical
• Compressors
• Water filtration
Features/Benefits:
• All brass construction
• Captive sleeve
• Higher working pressures versus standard compression fitting
• Bodies interchangeable with standard compression bodies
• Economical
• One wrench turn from finger tight for assembly for all sizes
• 1/8" through 1" sizes available
• U.L. listed for flammable liquids
Applications:
• Air lines
• Lubrication lines
• Fluid transfer
• Chemical dispensing
• Cooling lines
• Machine tool
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Shape | Connection 2 Type | Connection 2 Thread Size | Body Material | Connection 1 Type | Connection 1 Tube Outside Diameter | Configuration | Body Material | Maximum Operating Temperature | For Fluid Type | Connection Type | Minimum Operating Temperature | Dimensional Weight | Maximum Operating Pressure | Tube Material | Materials of Construction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 169CA-8-6 | 22 in stock | 374 in stock | $14.40/each | EA | Elbow 90° | Male Pipe | 3/8" | Brass, Forged | Compression | 1/2" (O.D.) | Tube to Pipe | Brass | 250 °F | Air | NPTF | -65 °F | 0.2759 lb | 2800 psi | TFE | Brass (Sleeve) | |
| 169CA-8-8 | 54 in stock | 536 in stock | $19.12/each | EA | Elbow 90° | Male Pipe | 1/2" | Brass, Forged | Compression | 1/2" (O.D.) | Tube to Pipe | Brass | 121 °C | Inert Gases | NPTF | -54 °C | 0.2759 lb | 193 bar | PFA | Brass (Nut) | |

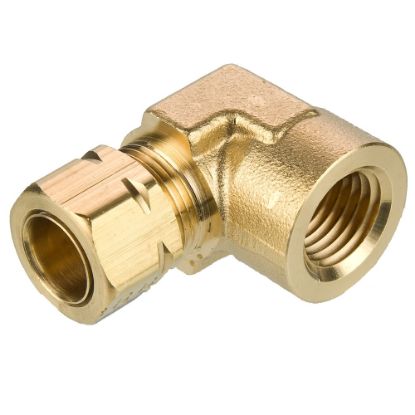

| 170CA-12-12 | Backordered | Backordered | $46.76/each | EA | Elbow 90° | Female Pipe | 3/4" | Brass, Forged | Compression | 3/4" (O.D.) | Tube to Female Pipe | Brass | 121 °C | Inert Gases | NPTF | -65 °F | 2800 psi | Copper | Brass (Sleeve) | ||
| 170CA-2-2 | 20 in stock | 168 in stock | $25.11/each | EA | Elbow 90° | Female Pipe | 1/8" | Brass, Forged | Compression | 1/8" (O.D.) | Tube to Female Pipe | Brass | 121 °C | Inert Gases | NPTF | -65 °F | 0.2759 lb | 193 bar | Thermoplastic | Brass (Nut) | |
| 170CA-3-2 | Backordered | Backordered | $11.80/each | EA | Elbow 90° | Female Pipe | 1/8" | Brass, Forged | Compression | 3/16" (O.D.) | Tube to Female Pipe | Brass | 250 °F | Inert Gases | NPTF | -54 °C | 193 bar | FEA | Brass (Sleeve) | ||
| 170CA-4-2 | 32 in stock | 2243 in stock | $7.85/each | EA | Elbow 90° | Female Pipe | 1/8" | Brass, Forged | Compression | 1/4" (O.D.) | Tube to Female Pipe | Brass | 121 °C | Air | NPTF | -54 °C | 0.1104 lb | 2800 psi | TFE | Brass (Sleeve) | |
| 170CA-4-4 | 5 in stock | 672 in stock | $10.43/each | EA | Elbow 90° | Female Pipe | 1/4" | Brass, Forged | Compression | 1/4" (O.D.) | Tube to Female Pipe | Brass | 121 °C | Inert Gases | NPTF | -54 °C | 0.1104 lb | 193 bar | PFA | Brass (Sleeve) | |
| 170CA-6-4 | 106 in stock | 1177 in stock | $11.61/each | EA | Elbow 90° | Female Pipe | 1/4" | Brass, Forged | Compression | 3/8" (O.D.) | Tube to Female Pipe | Brass | 250 °F | Non-combustible Gases | NPTF | -65 °F | 0.2759 lb | 2800 psi | Copper | Brass (Sleeve) | |
| 170CA-6-6 | 42 in stock | 218 in stock | $21.09/each | EA | Elbow 90° | Female Pipe | 3/8" | Brass, Forged | Compression | 3/8" (O.D.) | Tube to Female Pipe | Brass | 250 °F | Non-combustible Gases | NPTF | -54 °C | 193 bar | Thermoplastic | Brass (Nut) | ||
| 170CA-8-6 | 48 in stock | 945 in stock | $16.74/each | EA | Elbow 90° | Female Pipe | 3/8" | Brass, Forged | Compression | 1/2" (O.D.) | Tube to Female Pipe | Brass | 121 °C | Non-combustible Gases | NPTF | -65 °F | 0.2759 lb | 2800 psi | Copper | Brass (Nut) | |
| 170CA-8-8 | 1 Limited Stock | 5 in stock | $34.88/each | EA | Elbow 90° | Female Pipe | 1/2" | Brass, Forged | Compression | 1/2" (O.D.) | Tube to Female Pipe | Brass | 250 °F | Air | NPTF | -65 °F | 2800 psi | Copper | Brass (Nut) | ||

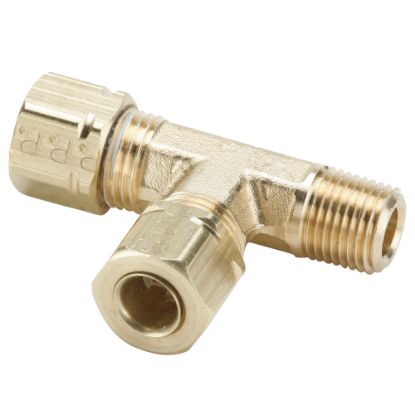

| 171CA-2-2 | 11 in stock | 122 in stock | $26.03/each | EA | Run Tee | Male Pipe | 1/8" | Brass, Forged | Compression | 1/8" (O.D.) | Tube to Pipe | Brass | 121 °C | Non-combustible Gases | NPTF | -65 °F | 193 bar | TFE | Brass (Sleeve) | ||
| 171CA-3-2 | 5 in stock | 54 in stock | $12.10/each | EA | Run Tee | Male Pipe | 1/8" | Brass, Forged | Compression | 3/16" (O.D.) | Tube to Pipe | Brass | 250 °F | Non-combustible Gases | NPTF | -54 °C | 193 bar | Thermoplastic | Brass (Nut) | ||
| 171CA-4-2 | 20 in stock | 249 in stock | $10.70/each | EA | Run Tee | Male Pipe | 1/8" | Brass, Forged | Compression | 1/4" (O.D.) | Tube to Pipe | Brass | 250 °F | Water | NPTF | -65 °F | 193 bar | TFE | Brass (Sleeve) | ||
| 171CA-4-4 | 31 in stock | 201 in stock | $16.21/each | EA | Run Tee | Male Pipe | 1/4" | Brass, Forged | Compression | 1/4" (O.D.) | Tube to Pipe | Brass | 121 °C | Inert Gases | NPTF | -54 °C | 0.2759 lb | 193 bar | TFE | Brass (Sleeve) | |
| 171CA-6-4 | 112 in stock | 156 in stock | $15.45/each | EA | Run Tee | Male Pipe | 1/4" | Brass, Forged | Compression | 3/8" (O.D.) | Tube to Pipe | Brass | 121 °C | Non-combustible Gases | NPTF | -54 °C | 0.2759 lb | 193 bar | PFA | Brass (Sleeve) | |

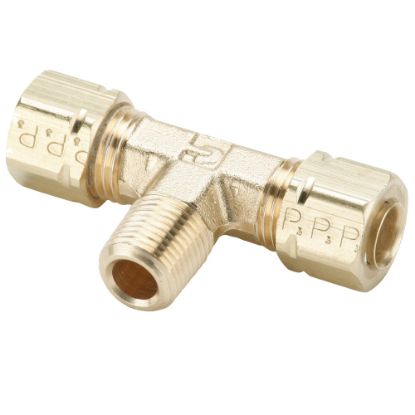

| 172CA-12-12 | Backordered | 3 in stock | $70.01/each | EA | Branch Tee | Male Pipe | 3/4" | Brass, Forged | Compression | 3/4" (O.D.) | Tube to Pipe | Brass | 121 °C | Water | NPTF | -65 °F | 0.4599 lb | 2800 psi | FEA | Brass (Nut) | |
| 172CA-2-2 | 2 Limited Stock | 65 in stock | $19.25/each | EA | Branch Tee | Male Pipe | 1/8" | Brass, Forged | Compression | 1/8" (O.D.) | Tube to Pipe | Brass | 121 °C | Non-combustible Gases | NPTF | -65 °F | 0.2759 lb | 2800 psi | Thermoplastic | Brass (Sleeve) | |
| 172CA-3-2 | 18 in stock | 19 in stock | $17.18/each | EA | Branch Tee | Male Pipe | 1/8" | Brass, Forged | Compression | 3/16" (O.D.) | Tube to Pipe | Brass | 121 °C | Inert Gases | NPTF | -54 °C | 193 bar | TFE | Brass (Nut) | ||
| 172CA-4-2 | 17 in stock | 111 in stock | $11.93/each | EA | Branch Tee | Male Pipe | 1/8" | Brass, Forged | Compression | 1/4" (O.D.) | Tube to Pipe | Brass | 250 °F | Inert Gases | NPTF | -65 °F | 0.2759 lb | 2800 psi | Copper | Brass (Nut) |
