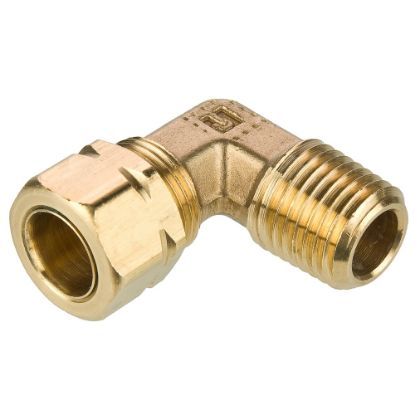

Brass Compression Fittings, Compress-Align
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's economical Compress-Align fittings are pre-assembled with a captive sleeve which is always oriented correctly for faster assembly. The captive sleeve gives a visible inspection before and after installation and the design of the sleeve aligns to seal even out-of-round tubing. Compress-Align can be used in many areas where flare fittings are used due to the higher pressure rating, meaning no flaring, soldering or tube preparation resulting in faster installation. Compress-Align bodies are interchangeable with standard compression bodies so inventory is decreased.
Use with copper, aluminum and the following Parker Parflex Division tubing.
• Polyethylene
• Nylon
• Polypropylene
• PTFE
• FEP
• PFA
Markets:
• Industrial
• Pneumatic
• Packaging
• Automation
• Chemical
• Compressors
• Water filtration
Features/Benefits:
• All brass construction
• Captive sleeve
• Higher working pressures versus standard compression fitting
• Bodies interchangeable with standard compression bodies
• Economical
• One wrench turn from finger tight for assembly for all sizes
• 1/8" through 1" sizes available
• U.L. listed for flammable liquids
Applications:
• Air lines
• Lubrication lines
• Fluid transfer
• Chemical dispensing
• Cooling lines
• Machine tool
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 1 Tube Outside Diameter | Shape | Connection 2 Type | Connection 2 Thread Size | Body Material | Connection 1 Type | Configuration | Body Material | Connection Type | Maximum Operating Temperature | Minimum Operating Temperature | Maximum Operating Pressure | Tube Material | For Fluid Type | Materials of Construction | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 169CA-10-6 | Backordered | 16 in stock | $30.14/each | EA | 5/8" (O.D.) | Elbow 90° | Male Pipe | 3/8" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -65 °F | 2800 psi | Thermoplastic | Non-combustible Gases | Brass (Sleeve) | ||
| 169CA-10-8 | 5 in stock | 166 in stock | $22.56/each | EA | 5/8" (O.D.) | Elbow 90° | Male Pipe | 1/2" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -54 °C | 2800 psi | PFA | Air | Brass (Sleeve) | ||
| 169CA-12-12 | Backordered | 1 Limited Stock | $49.26/each | EA | 3/4" (O.D.) | Elbow 90° | Male Pipe | 3/4" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -54 °C | 2800 psi | FEA | Air | Brass (Nut) | 0.5519 lb | |
| 169CA-12-8 | Backordered | 20 in stock | $56.10/each | EA | 3/4" (O.D.) | Elbow 90° | Male Pipe | 1/2" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -65 °F | 2800 psi | FEA | Water | Brass (Sleeve) | 0.5519 lb | |
| 169CA-16-12 | Backordered | Backordered | $99.89/each | EA | 1" (O.D.) | Elbow 90° | Male Pipe | 3/4" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 250 °F | -54 °C | 193 bar | TFE | Air | Brass (Sleeve) | ||
| 169CA-2-1 | Backordered | 26 in stock | $18.37/each | EA | 1/8" (O.D.) | Elbow 90° | Male Pipe | 1/16" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 250 °F | -65 °F | 2800 psi | TFE | Inert Gases | Brass (Nut) | ||
| 169CA-3-1 | Backordered | Backordered | $20.01/each | EA | 3/16" (O.D.) | Elbow 90° | Male Pipe | 1/16" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -54 °C | 193 bar | Thermoplastic | Water | Brass (Nut) | ||
| 169CA-3-2 | 17 in stock | 501 in stock | $6.35/each | EA | 3/16" (O.D.) | Elbow 90° | Male Pipe | 1/8" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -54 °C | 2800 psi | PFA | Inert Gases | Brass (Nut) | 0.2759 lb | |
| 169CA-3-4 | 11 in stock | 117 in stock | $15.16/each | EA | 3/16" (O.D.) | Elbow 90° | Male Pipe | 1/4" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -65 °F | 193 bar | Thermoplastic | Air | Brass (Sleeve) | 0.2759 lb | |
| 169CA-4-2 | 151 in stock | 5494 in stock | $4.80/each | EA | 1/4" (O.D.) | Elbow 90° | Male Pipe | 1/8" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 250 °F | -65 °F | 2800 psi | TFE | Air | Brass (Nut) | 0.0552 lb | |
| 169CA-4-4 | 8116 in stock | 1728 in stock | $5.62/each | EA | 1/4" (O.D.) | Elbow 90° | Male Pipe | 1/4" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -54 °C | 2800 psi | TFE | Air | Brass (Sleeve) | 0.0552 lb | |
| 169CA-4-6 | 14 in stock | 211 in stock | $14.90/each | EA | 1/4" (O.D.) | Elbow 90° | Male Pipe | 3/8" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -65 °F | 2800 psi | Aluminum | Inert Gases | Brass (Nut) | ||
| 169CA-5-2 | 3 in stock | 116 in stock | $6.60/each | EA | 5/16" (O.D.) | Elbow 90° | Male Pipe | 1/8" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 250 °F | -54 °C | 193 bar | PFA | Water | Brass (Nut) | 0.2759 lb | |
| 169CA-5-4 | 30 in stock | 176 in stock | $8.04/each | EA | 5/16" (O.D.) | Elbow 90° | Male Pipe | 1/4" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -54 °C | 193 bar | Thermoplastic | Water | Brass (Nut) | 0.1104 lb | |
| 169CA-5-6 | 12 in stock | 59 in stock | $24.10/each | EA | 5/16" (O.D.) | Elbow 90° | Male Pipe | 3/8" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -65 °F | 2800 psi | Copper | Non-combustible Gases | Brass (Sleeve) | ||
| 169CA-6-2 | 15 in stock | 888 in stock | $8.67/each | EA | 3/8" (O.D.) | Elbow 90° | Male Pipe | 1/8" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -54 °C | 193 bar | Aluminum | Water | Brass (Sleeve) | 0.2759 lb | |
| 169CA-6-4 | 483 in stock | 967 in stock | $7.85/each | EA | 3/8" (O.D.) | Elbow 90° | Male Pipe | 1/4" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -65 °F | 2800 psi | TFE | Non-combustible Gases | Brass (Nut) | 0.1104 lb | |
| 169CA-6-6 | 38 in stock | 1071 in stock | $11.01/each | EA | 3/8" (O.D.) | Elbow 90° | Male Pipe | 3/8" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 250 °F | -65 °F | 193 bar | PFA | Water | Brass (Sleeve) | 0.1104 lb | |
| 169CA-6-8 | 19 in stock | 230 in stock | $15.45/each | EA | 3/8" (O.D.) | Elbow 90° | Male Pipe | 1/2" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 250 °F | -54 °C | 2800 psi | Thermoplastic | Inert Gases | Brass (Sleeve) | 0.2759 lb | |
| 169CA-8-4 | 20 in stock | 43 in stock | $18.94/each | EA | 1/2" (O.D.) | Elbow 90° | Male Pipe | 1/4" | Brass, Forged | Compression | Tube to Pipe | Brass | NPTF | 121 °C | -54 °C | 193 bar | Aluminum | Water | Brass (Sleeve) | 0.2759 lb |
