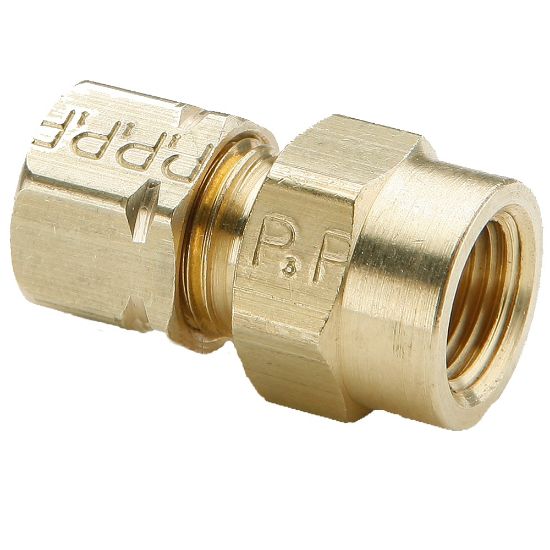

Picture of Brass Compression Fittings, Compress-Align - 66CA-4-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass Compression Fittings, Compress-Align - 66CA-4-4

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.
Availability:
16 in stock
Wichita, KS2
COLUMBIA, MO2
Kansas City, KS2
TOPEKA, KS2
Joplin, MO2
Peoria, IL2
Olivette, MO2
Decatur, IL2
SKU 66CA-4-4
$7.78
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialBRASS
Connection 2 TypeFemale PipeProduct StyleConnector
Connection 2 Thread Size1/4"Connection 1 TypeCompression
Connection 1 Tube Outside Diameter1/4" (O.D.)ConfigurationTube to Female Pipe
DivisionFluid System Connectors DivisionBody MaterialBrass
Connection TypeNPTFMaximum Operating Temperature121 °C
Dimensional Weight0.2759 lbFor Fluid TypeInert Gases
Maximum Operating Pressure2800 psiMinimum Operating Temperature-54 °C
ApplicationCompressorsMaterials of ConstructionBrass (Nut)
Tube MaterialThermoplastic
