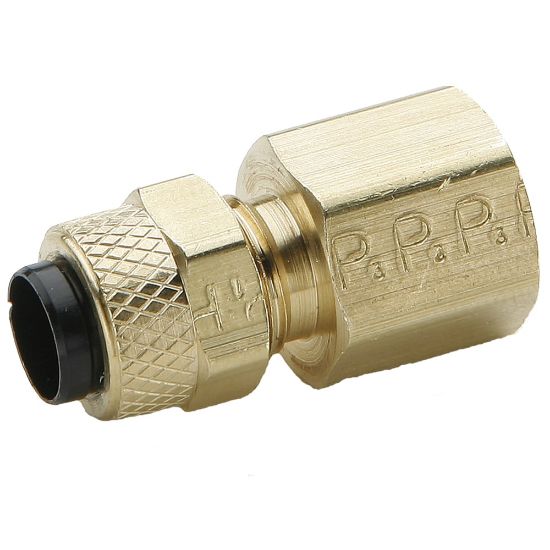

Picture of Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite. - 66P-4-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite. - 66P-4-4

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.
Availability:
29 in stock
Kansas City, KS19
Olivette, MO7
Decatur, IL3
SKU 66P-4-4
$6.85
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 2 Tube O.D. (inch)na
ShapeConnectorConnection 1 StyleCompression
Connection 1 Tube O.D. (inch)1/4Connection 2 Thread Size (inch)1/4
Connection 2 StyleFemale PipeStyleTube to Female Pipe
DivisionFluid System Connectors DivisionBody MaterialBrass
Minimum Operating Temperature0 °FMaximum Operating Temperature65 °C
Maximum Operating Pressure10 barDimensional Weight0.27594424460431655 lb
Nut MaterialBrassTube MaterialPolyethylene, Nylon, Polypropylene, Vinyl
Sleeve MaterialBrass, Acetal CopolymerApplicationPackaging
