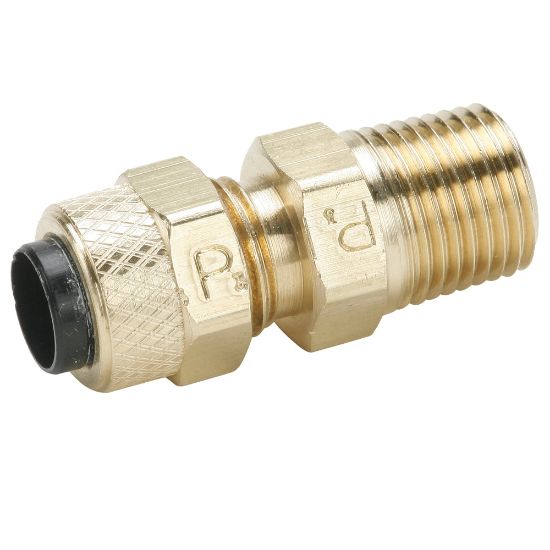

Picture of Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite. - 68P-4-1

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite. - 68P-4-1

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.
Availability:
42 in stock
Kansas City, KS38
Olivette, MO3
Olivette, MO1
SKU 68P-4-1
$11.19
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 2 StyleMale Pipe
Connection 1 StyleCompressionStyleTube to Pipe
Connection 1 Tube O.D. (inch)1/4ShapeConnector
Connection 2 Thread Size (inch)1/16Connection 2 Tube O.D. (inch)na
Tube MaterialPolyethylene, Nylon, Polypropylene, VinylSleeve MaterialBrass, Acetal Copolymer
Nut MaterialBrassMaximum Operating Temperature150 °F
Minimum Operating Temperature-17 °CApplicationPackaging
Dimensional Weight0.11037769784172662 lbDivisionFluid System Connectors Division
Maximum Operating Pressure150 psiBody MaterialBrass
