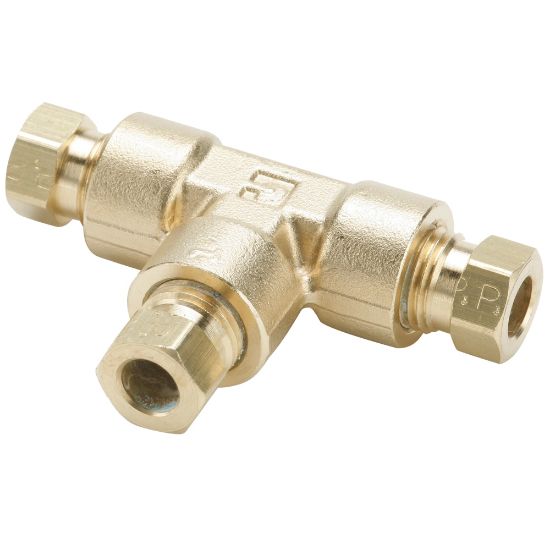

Brass flareless tube fitting, Hi-Duty - 164HD-8

Name: Brass flareless tube fitting, Hi-Duty - 164HD-8
SKU: 164HD-8

Parker's Hi-Duty fitting is a preassembled brass fitting fitting with a sleeve machined onto the nut. This unique design creates tight joints that withstand pressures of most commomly used types of tubing.

Availability:

Backordered

SKU 164HD-8

$78.63

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	1/2
Connection 1 Style	Compression	Connection 2 Style	Compression
Style	Tube to Tube	Connection 1 Tube O.D. (inch)	1/2
Division	Fluid System Connectors Division	Body Material	Brass
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-65 °F
Nut Material	Brass	Application	Tube Assemblies, Engine, Compressors
Maximum Operating Pressure	1150 psi	Tube Material	Tube Assemblies, Engine, Compressors
Sleeve Material	Brass
