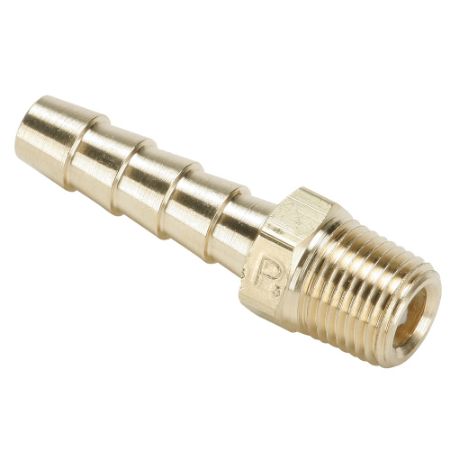

Brass Hose Barb Fittings

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s hose barb fittings are an economical choice for general purpose fluid handling and pneumatics. Manufactured in both tapered and beaded hose barb styles hose barbs are reusable and offer good vibration resistance. These hose barb fittings are intended for use with Parker's 97HC hose clamps, similar type clamps or a crimped ferrule. Parker's hose barb fittings are available for both inch and metric size hoses with NPTF, BSPT, SAE straight thread and metric threads.

Markets:

• Industrial

• Construction

• Heavy duty truck

• Mobile

Features/Benefits:

• Beaded Hose barb to NPT Threaded Connections

• Up to 1” hose, -14 SAE and M33

• Eliminates system contamination from rust

• One piece forging

• Smaller than J1231 steel alternatives for use in confined areas

Applications:

• Compressed air lines

• Water lines

• Cooling lines

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Product Style	Connection 2 Type	Configuration	Connection 1 Style	Connection 1 Hose I.D. (inch)	Connection 2 Hose I.D. (inch)	Body Material	Dimensional Weight	Connection 2 Thread Size
122HB-3	Backordered	113 in stock	$4.93/each	EA	Mender	Barb	Barb to Barb	Barb	3/16" (I.D.)	3/16" (I.D.)	Brass	0.1104 lb
122HBL-12	63 in stock	456 in stock	$12.27/each	EA	Mender	Barb	Barb to Barb	Barb	3/4" (I.D.)	3/4" (I.D.)	Brass	0.2759 lb
122HBL-4	86 in stock	3467 in stock	$2.72/each	EA	Mender	Barb	Barb to Barb	Barb	1/4" (I.D.)	1/4" (I.D.)	Brass	0.11 lb
122HBL-5	7 in stock	231 in stock	$3.76/each	EA	Mender	Barb	Barb to Barb	Barb	5/16" (I.D.)	5/16" (I.D.)	Brass	0.1162 lb
122HBL-6	27 in stock	2929 in stock	$4.30/each	EA	Mender	Barb	Barb to Barb	Barb	3/8" (I.D.)	3/8" (I.D.)	Brass	0.1089 lb
122HBL-8	22 in stock	1269 in stock	$5.26/each	EA	Mender	Barb	Barb to Barb	Barb	1/2" (I.D.)	1/2" (I.D.)	Brass	0.2722 lb
125HB-2-2	28 in stock	2051 in stock	$3.82/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	1/8" (I.D.)	n/a	Brass	0.0552 lb	1/8"
125HB-3-2	35 in stock	680 in stock	$3.89/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	3/16" (I.D.)	n/a	Brass	0.0552 lb	1/8"
125HB-3-4	23 in stock	1105 in stock	$5.06/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	3/16" (I.D.)	n/a	Brass	0.1104 lb	1/4"
125HBL-10-12	39 in stock	349 in stock	$9.03/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	5/8" (I.D.)	n/a	Brass	0.1104 lb	3/4"
125HBL-10-6	31 in stock	363 in stock	$7.23/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	5/8" (I.D.)	n/a	Brass	0.2759 lb	3/8"
125HBL-10-8	245 in stock	1377 in stock	$7.82/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	5/8" (I.D.)	n/a	Brass	0.1104 lb	1/2"
125HBL-12-12	78 in stock	2003 in stock	$10.62/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	3/4" (I.D.)	n/a	Brass	0.2841 lb	3/4"
125HBL-12-8	79 in stock	1405 in stock	$8.43/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	3/4" (I.D.)	n/a	Brass	0.2759 lb	1/2"
125HBL-16-12	18 in stock	439 in stock	$7.59/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	1" (I.D.)	n/a	Brass	0.2759 lb	3/4"
125HBL-16-16	78 in stock	1216 in stock	$14.56/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	1" (I.D.)	n/a	Brass	0.2759 lb	1"
125HBL-4-2	1021 in stock	4939 in stock	$2.46/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	1/4" (I.D.)	n/a	Brass	0.0552 lb	1/8"
125HBL-4-4	497 in stock	4570 in stock	$2.78/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	1/4" (I.D.)	n/a	Brass	0.0552 lb	1/4"
125HBL-4-6	60 in stock	600 in stock	$3.66/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	1/4" (I.D.)	n/a	Brass	0.1169 lb	3/8"
125HBL-5-2	49 in stock	603 in stock	$3.35/each	EA	Connector	Male Pipe	Barb to Pipe	Barb	5/16" (I.D.)	n/a	Brass	0.1104 lb	1/8"
