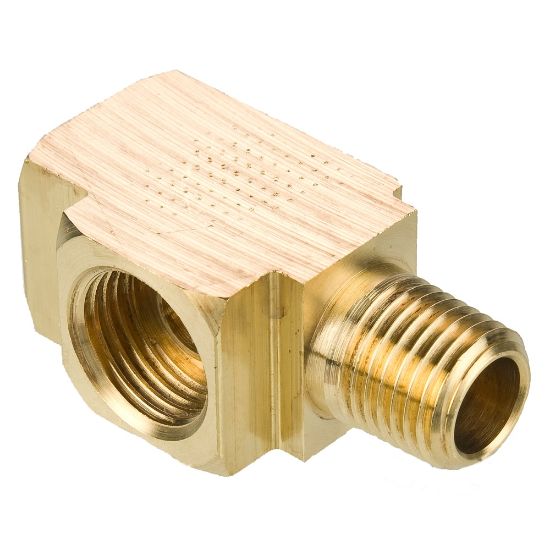

251IFHD-6-4 - Brass Inverted Flare Fittings

Name: 251IFHD-6-4 - Brass Inverted Flare Fittings
SKU: 251IFHD-6-4
Price: 29.38 USD
Availability: InStock

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

Availability:

10 in stock

Springfield, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 251IFHD-6-4

$29.38/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Run Tee
Connection 2 Tube O.D. (inch)	na	Connection 1 Tube O.D. (inch)	3/8
Connection 2 Style	Male Pipe	Connection 2 Thread Size (inch)	1/4
Connection 1 Style	Inverted Flare	Style	Flare to Pipe
Body Material	Brass	Maximum Operating Temperature	250 °F
Maximum Operating Pressure	69 bar	Minimum Operating Temperature	-65 °F
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Specifications Met	SAE J512	Nut Material	Brass, Zinc Chromate Steel
