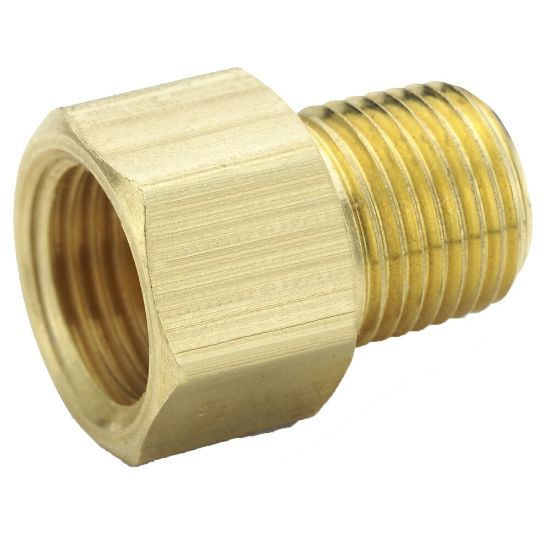

Brass Inverted Flare Fittings - 48IFHD-8-6

Name: Brass Inverted Flare Fittings - 48IFHD-8-6
SKU: 48IFHD-8-6
Price: 8.72 USD
Availability: InStock

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

Availability:

23 in stock

Kansas City, KS	22
Wichita, KS	1

SKU 48IFHD-8-6

$8.72

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube O.D. (inch)	na
Shape	Connector	Connection 1 Tube O.D. (inch)	1/2
Connection 2 Style	Male Pipe	Connection 2 Thread Size (inch)	3/8
Connection 1 Style	Inverted Flare	Style	Flare to Pipe
Division	Fluid System Connectors Division	Body Material	Brass
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-53 °C
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Maximum Operating Pressure	52 bar	Specifications Met	SAE J512
Application	Pumps, Brake Lines	Nut Material	Brass, Zinc Chromate Steel
