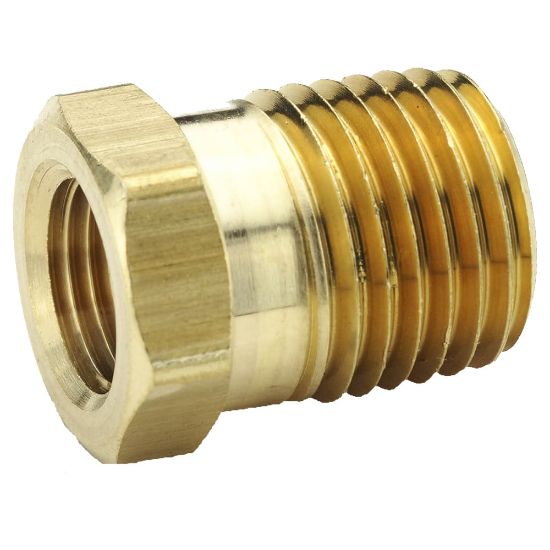

209P-8-6 - Brass Pipe Fittings

Name: 209P-8-6 - Brass Pipe Fittings
SKU: 209P-8-6
Price: 5.31 USD
Availability: InStock

Parker's forged and extruded brass pipe fittings meet functional requirements of SAE J530 and SAE J531.

Availability:

111 in stock

Kansas City, KS	33
Decatur, IL	30
Olivette, MO	17
WICHITA, KS	10
COLUMBIA, MO	5
Kansas City, KS	5
Springfield, MO	3
Joplin, MO	3
Peoria, IL	2
Olivette, MO	2
TOPEKA, KS	1

Partner Available:

2685 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 209P-8-6

$5.31/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Length	n/a
Connection 1 Size	1/2"	Connection 1 Type	Male Pipe
Connection 2 Size	3/8"	Connection 2 Type	Female Pipe
Product Style	Bushing	Maximum Operating Pressure	1000 psi
Body Material	Brass	Maximum Operating Temperature	250 °F
Tube Material	Copper, Brass, Iron Pipe	Specifications Met	SAE J530, SAE J531
Minimum Operating Temperature	-53 °C	Dimensional Weight	0.1104 lb
