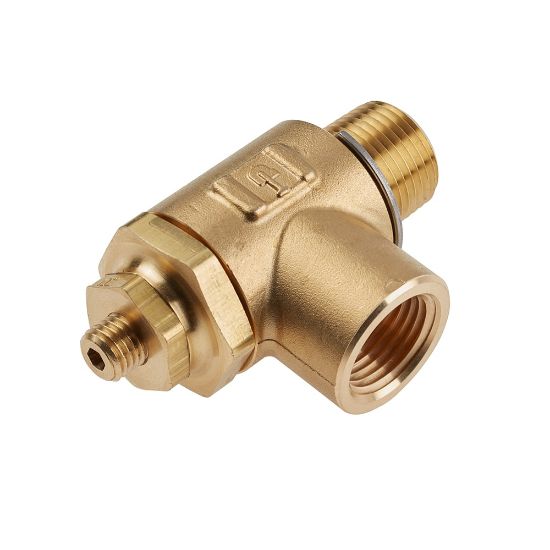

FC703-4 - Brass Pneumatic Flow Controls

Name: FC703-4 - Brass Pneumatic Flow Controls
SKU: FC703-4
Price: 56.93 USD
Availability: InStock

Parker's Brass Pneumatic Flow Controls offer precise adjustment and accuracy for controlling the flow of air. The brass body meets the UL94 V-0 standard for flame resistance.

Availability:

101 in stock

Kansas City, KS	100
Wichita, KS	1

Partner Available:

54 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FC703-4

$56.93/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/4 inch
Connection 1 Type	Female NPT Thread	Connection 2 Size	1/4 inch
Product Style	Pipe to Pipe	Valve Configuration	Meter Out
Connection 2 Type	Male NPT Thread	Valve Configuration	Meter Out
Maximum Operating Temperature	+200° F / +93.3° C	Industry	Automotive, Industrial Manufacturing Equipment, Material Handling, Semiconductor
Product Style	Female Pipe to Pipe	Body Material	Brass
Media	Air	Minimum Operating Temperature	0° F / -17.8° C
Silicone Free	Yes	Specifications Met	UL94 V-0
Region of Origin	United States of America	Adjustment Mechanism	Allen wrench adjustment screw
Minimum Operating Pressure	15 psi / 1 bar	Maximum Operating Pressure	150 psi / 10.34 bar
