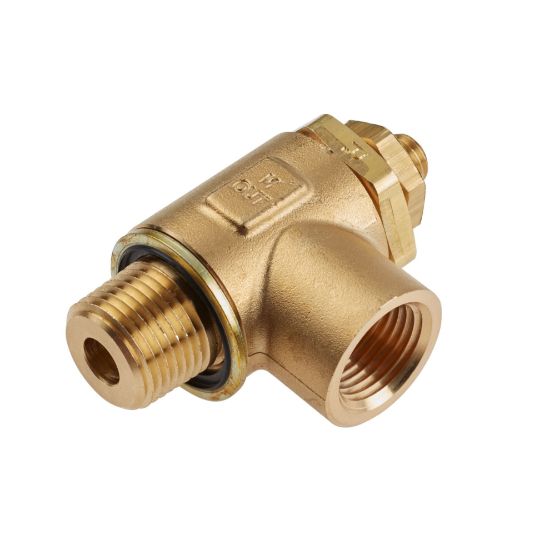

FC703-4G - Brass Pneumatic Flow Controls

Parker's Brass Pneumatic Flow Controls offer precise adjustment and accuracy for controlling the flow of air. The brass body meets the UL94 V-0 standard for flame resistance.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU FC703-4G

$59.88/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/4 inch
Connection 1 Type	Female BSPP Thread	Connection 2 Size	1/4 inch
Connection 2 Type	Male BSPP Thread	Product Style	Pipe to Pipe
Valve Configuration	Meter Out	Region of Origin	United States of America
Adjustment Mechanism	Allen wrench adjustment screw	Maximum Operating Pressure	150 psi / 10.34 bar
Minimum Operating Pressure	15 psi / 1 bar	Valve Configuration	Meter Out
Maximum Operating Temperature	+200° F / +93.3° C	Industry	Automotive, Industrial Manufacturing Equipment, Material Handling, Semiconductor
Product Style	Female Pipe to Pipe	Body Material	Brass
Minimum Operating Temperature	0° F / -17.8° C	Media	Air
Silicone Free	Yes	Specifications Met	UL94 V-0

Product resources

Literature and Reference Materials

Robotic Welding Solutions - Bul. 3501-RWS (PDF)

Compliance, Certifications & Safety

Certificate of conformity - PFAS (PDF)
