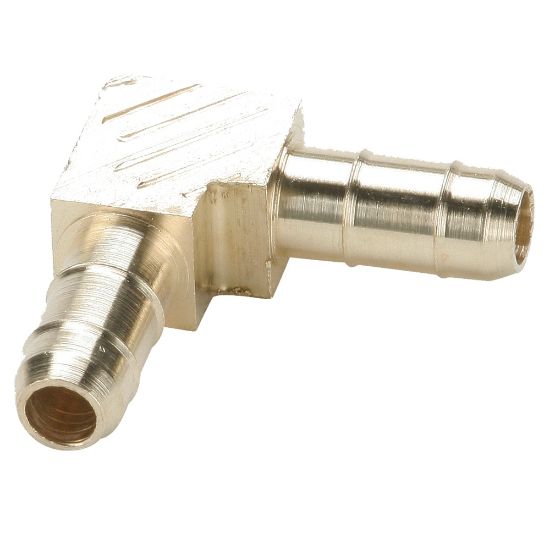

225-5/32 - Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb

Parker's Dubl-barb push-on hose barb is a compact one piece fitting for a quick, economical way to connect polyethylene tubing.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	129 in stock

SKU 225-5/32

$9.26/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Shape	90° Elbow
Connection 2 Thread Size (inch)	na	Connection 1 Style	Barb
Style	Tube to Tube	Connection 2 Style	Barb
Connection 2 Tube O.D. (inch)	5/32	Connection 1 Tube O.D. (inch)	5/32
Body Material	Brass	Maximum Operating Pressure	150 psi
Minimum Operating Temperature	-53 °C	Tube Material	Polyethylene
Maximum Operating Temperature	90 °F
